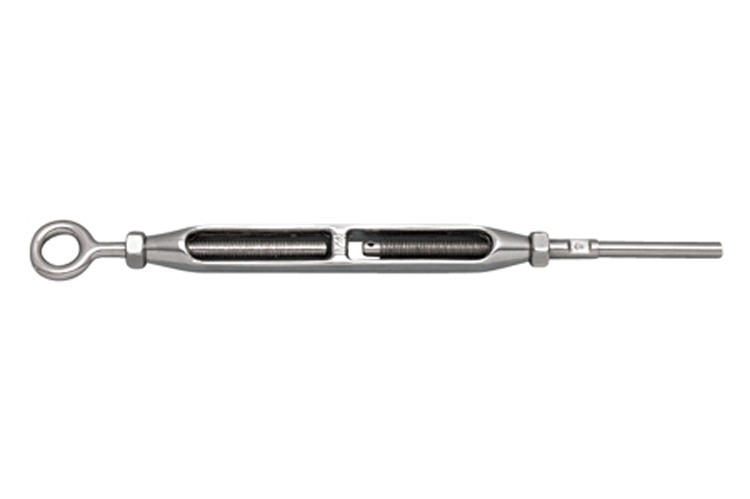

The Gate Eye and Hand Swage Stud Turnbuckle fits cable sizes 1/8" and 3/16". This hand swage turnbuckle features a hand swage stud, gate eye and an open style body. It is used in marine, industrial and architectural applications.
Unit of Measure

Specifications

Brands

 N/A Suncor

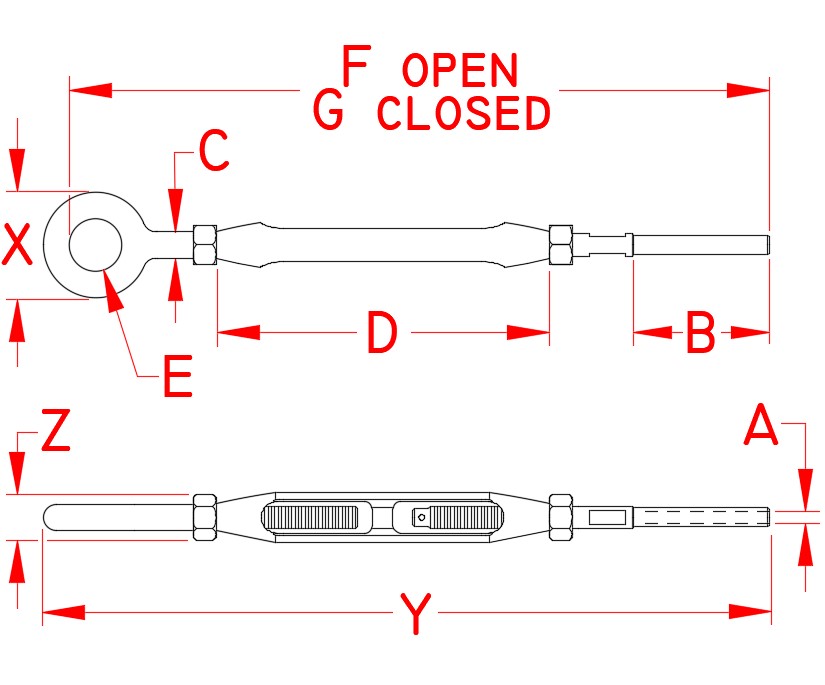

Dimension A

 N/A 3/16 in

Dimension B

 N/A 2.01 in

Dimension C

 N/A 0.25 in

Dimension D

 N/A 4.61 in

Dimension E

 N/A 0.42 in

Dimension G

 N/A 9.00 in

Dimension X

 N/A 0.82 in

Dimension Y

 N/A 9.20 in

Dimension Z

 N/A 0.43 in

Material

 N/A Chrome Bronze Body and Stainless Ends

Fabrication Type

 N/A Precision Cast Precision Machined

Made In

 N/A Import

Weight

 N/A 0.27 lb
