The Lift Eye Cleat is available in a size of 7" and is easily installed using two #10 screws. The threads are 5/8" - 11 UNC. This cleat is made from grade 316 stainless steel for maximum corrosion resistance and durability, which is perfect for boat decks and docks.
Unit of Measure

Specifications

Brands

 N/A Suncor

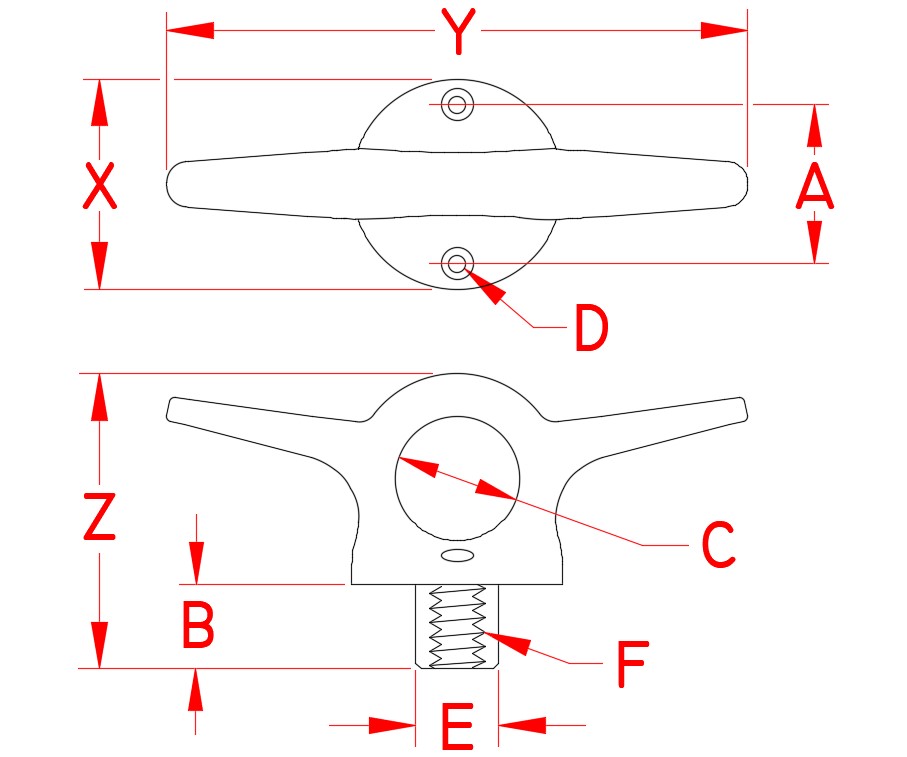

Dimension A

 N/A 2.00 in

Dimension B

 N/A 1.00 in

Dimension C

 N/A 1.50 in

Dimension D

 N/A 0.20 in

Dimension E

 N/A 0.98 in

Dimension F

 N/A 5/8 in UNC

Dimension X

 N/A 2.50 in

Dimension Y

 N/A 6.86 in

Dimension Z

 N/A 3.52 in

Material

 N/A 316 Stainless Steel

Fabrication Type

 N/A Precision Cast

Made In

 N/A Import

Weight

 N/A 1.64 lb
