The Triangular Hawse Pipe is precision cast and easily installed using #10 fasteners. It is made from grade 316 stainless steel for maximum corrosion resistance and durability. This Triangular Hawse Pipe can be flush mounted or recessed.
Unit of Measure

Specifications

Brands

 N/A Suncor

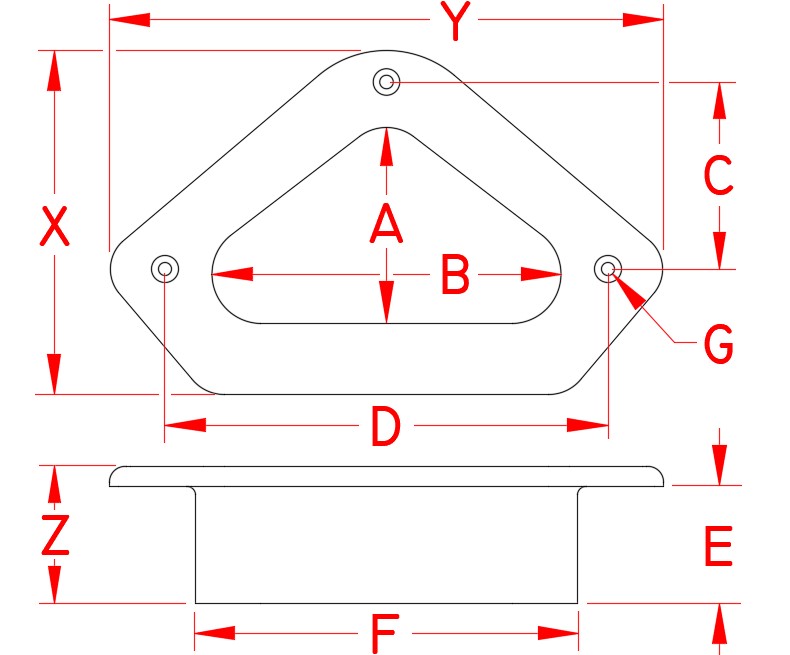

Dimension A

 N/A 2.81 in

Dimension B

 N/A 5.00 in

Dimension C

 N/A 2.60 in

Dimension D

 N/A 6.25 in

Dimension E

 N/A 1.74 in

Dimension F

 N/A 5.55 in

Dimension G

 N/A 0.18 in

Fastener

 N/A #10

Dimension X

 N/A 4.92 in

Dimension Y

 N/A 7.90 in

Dimension Z

 N/A 1.94 in

Material

 N/A 316 Stainless Steel

Fabrication Type

 N/A Precision Cast

Made In

 N/A Import

Weight

 N/A 2.6 lb
