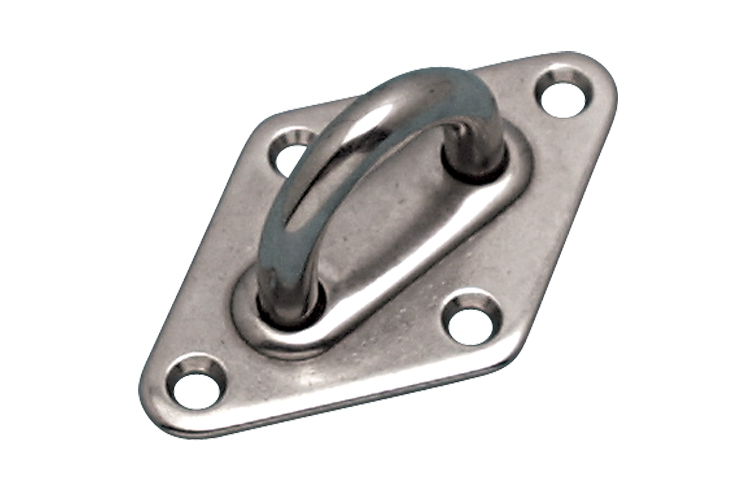

The Stamped Diamond Pad Eye is easily installed using 7/32" fasteners. It is ideal for marine, industrial, architectural, OEM and government applications. This diamond pad eye is made from grade 304 stainless steel for maximum corrosion resistance and durability.
Unit of Measure

Specifications

Brands

 N/A Suncor

Size

 N/A 3-1/4 in

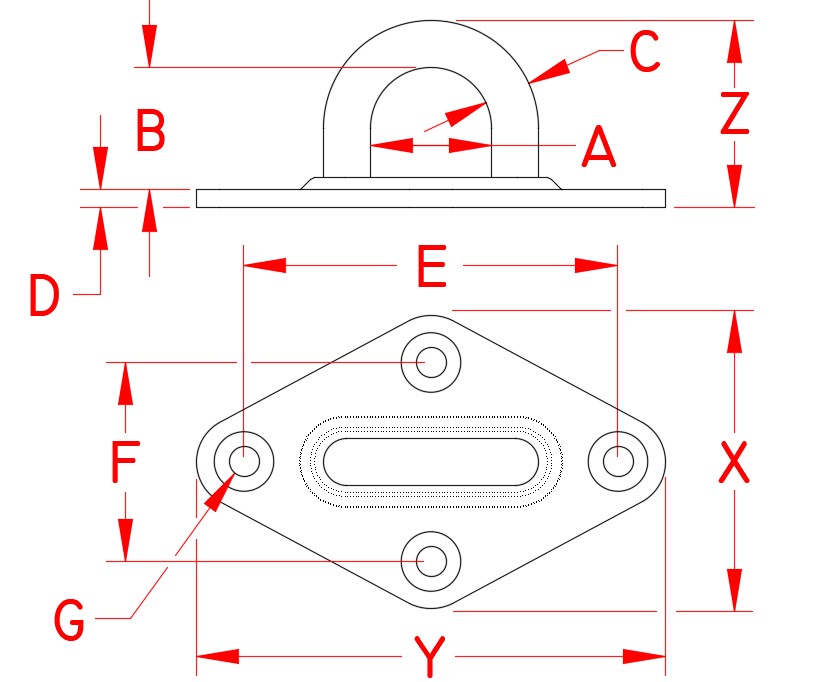

Dimension A

 N/A 0.95 in

Dimension B

 N/A 0.95 in

Dimension C

 N/A 0.31 in

Dimension D

 N/A 0.12 in

Dimension E

 N/A 2.57 in

Dimension F

 N/A 1.34 in

Dimension G

 N/A 0.19 in

Fastener

 N/A 7/32 in

Dimension X

 N/A 1.92 in

Dimension Y

 N/A 3.25 in

Dimension Z

 N/A 1.33 in

Material

 N/A 304 Stainless Steel

Fabrication Type

 N/A Stamped

Made In

 N/A Import

Weight

 N/A 0.18 lb
