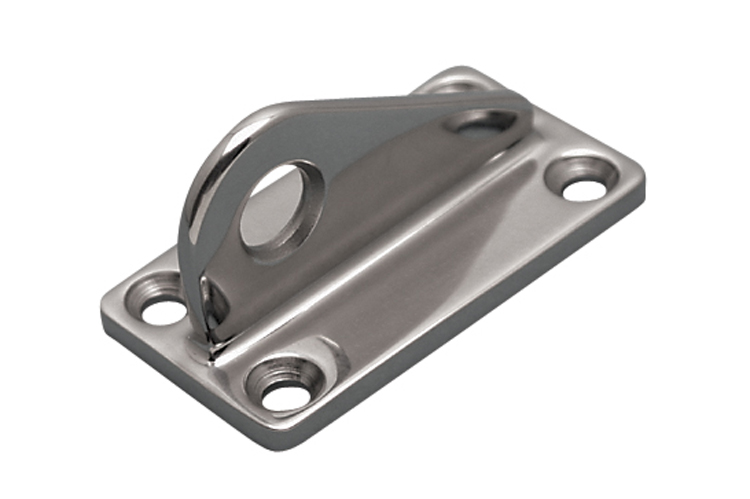

The Tow Pad Eye is ideal for marine, industrial, architectural, OEM and government applications. This pad eye is made from grade 316 stainless steel for maximum corrosion resistance and durability. A backing plate is available for load distribution.
Unit of Measure

Specifications

Brands

 N/A Suncor

Size

 N/A 3-1/2 in

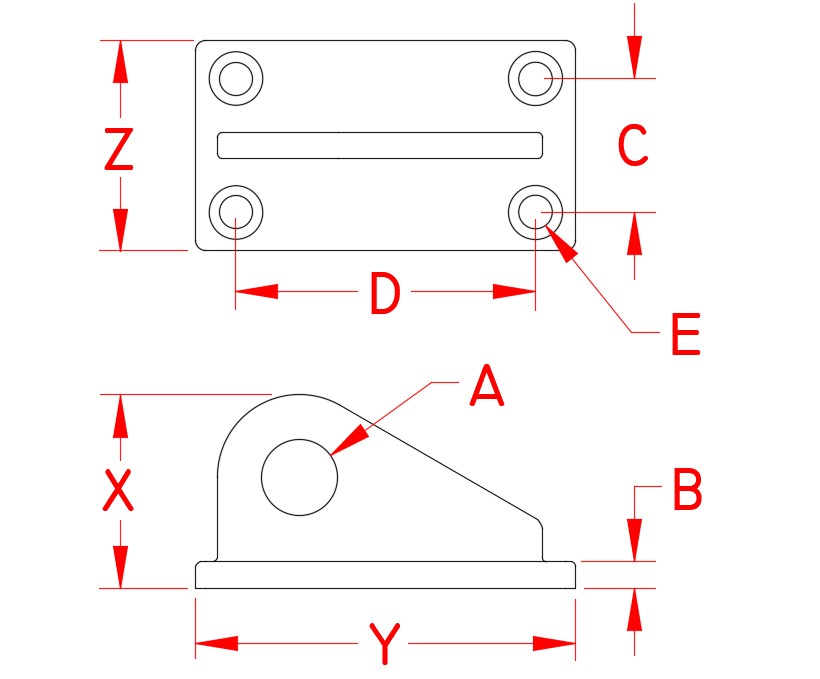

Dimension A

 N/A 0.60 in

Dimension B

 N/A 0.26 in

Dimension C

 N/A 1.25 in

Dimension D

 N/A 2.80 in

Dimension E

 N/A 0.30 in

Fastener

 N/A #14

Dimension X

 N/A 1.96 in

Dimension Y

 N/A 3.55 in

Dimension Z

 N/A 2.00 in

Material

 N/A 316 Stainless Steel

Fabrication Type

 N/A Precision Cast

Made In

 N/A Import

Weight

 N/A 0.8 lb
