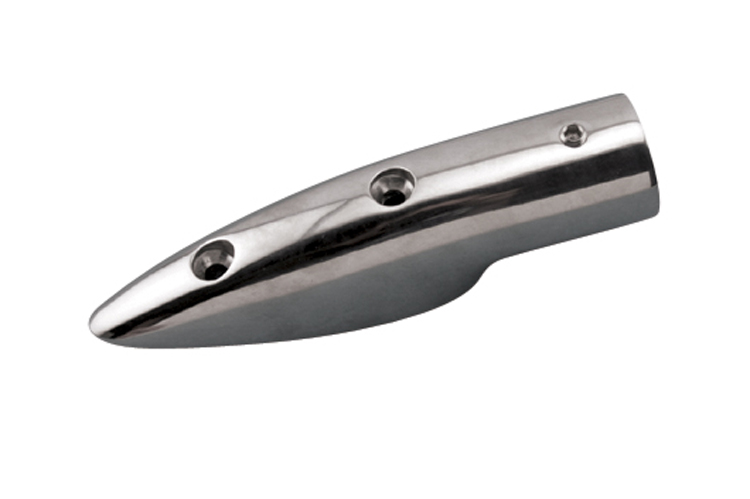

The End Mount In fittings accepts a 7/8" tube. It allows the rail to go inside and be secured with a set screw. This rail fitting is made from grade 316 stainless steel for maximum corrosion resistance and durability. These rail fittings are ideal for sailboat and powerboat railings.
Unit of Measure

Specifications

Brands

 N/A Suncor

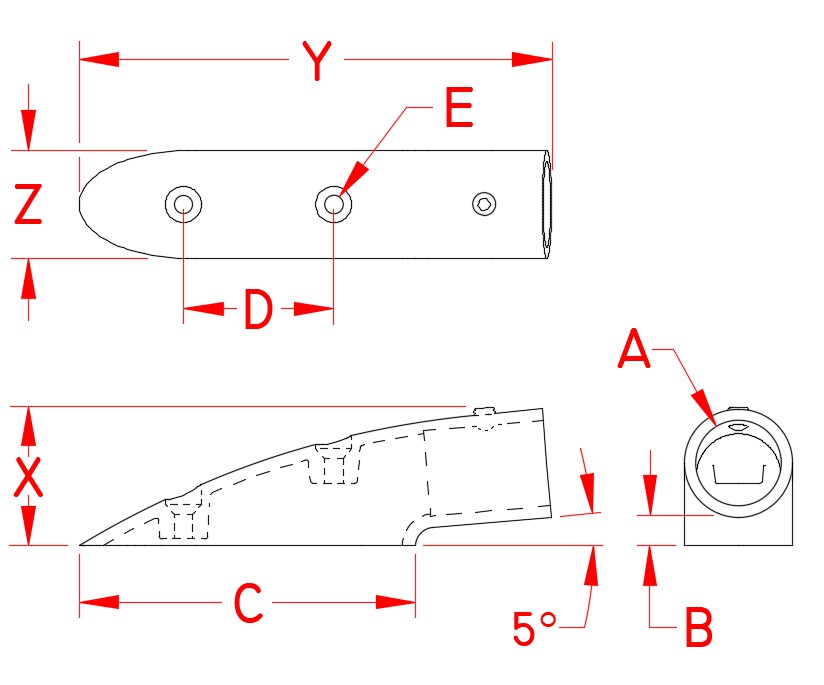

Dimension A

 N/A 7/8 in

Dimension B

 N/A 0.30 in

Dimension C

 N/A 3.49 in

Dimension D

 N/A 1.60 in

Dimension E

 N/A 0.18 in

Fastener

 N/A #10 Screws

Dimension X

 N/A 1.23 in

Dimension Y

 N/A 4.89 in

Dimension Z

 N/A 1.15 in

Material

 N/A 316 Stainless Steel

Fabrication Type

 N/A Precision Cast

Made In

 N/A Import

Weight

 N/A 0.392 lb
