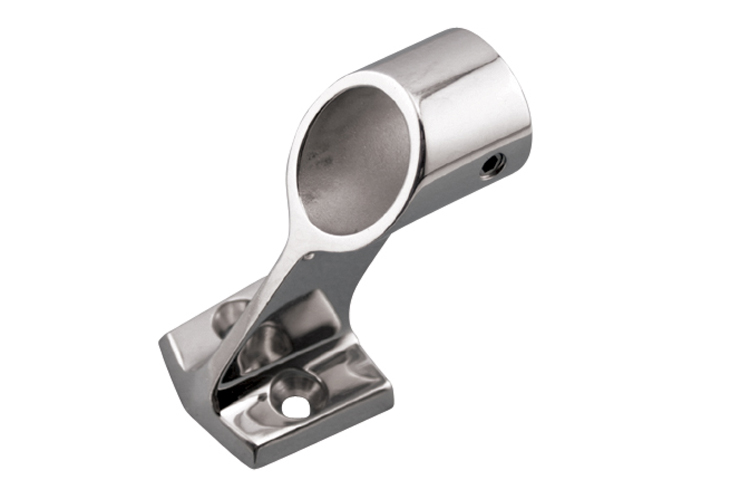

The Rail Stanchion Center accepts a 7/8" tube. This stanchion fitting allows for a higher clearance below the rail and is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for sailboat and powerboat railings.
Unit of Measure

Specifications

Brands

 N/A Suncor

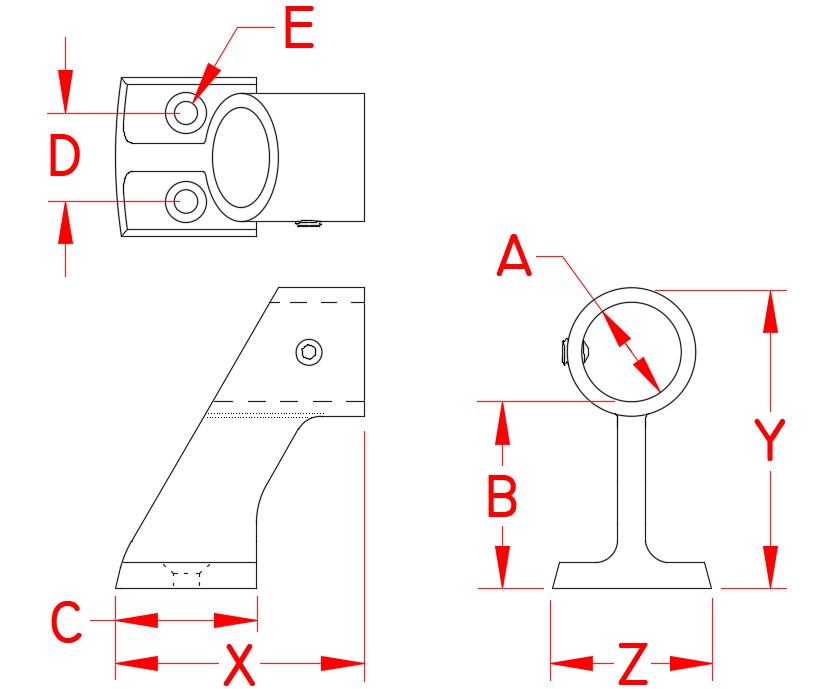

Dimension A

 N/A 7/8 in

Dimension B

 N/A 1.58 in

Dimension C

 N/A 1.40 in

Dimension D

 N/A 0.79 in

Dimension E

 N/A 0.18 in

Fastener

 N/A (2) #10

Dimension X

 N/A 2.36 in

Dimension Y

 N/A 2.57 in

Dimension Z

 N/A 1.46 in

Material

 N/A 316 Stainless Steel

Fabrication Type

 N/A Precision Cast

Made In

 N/A Import

Weight

 N/A 0.31 lb
