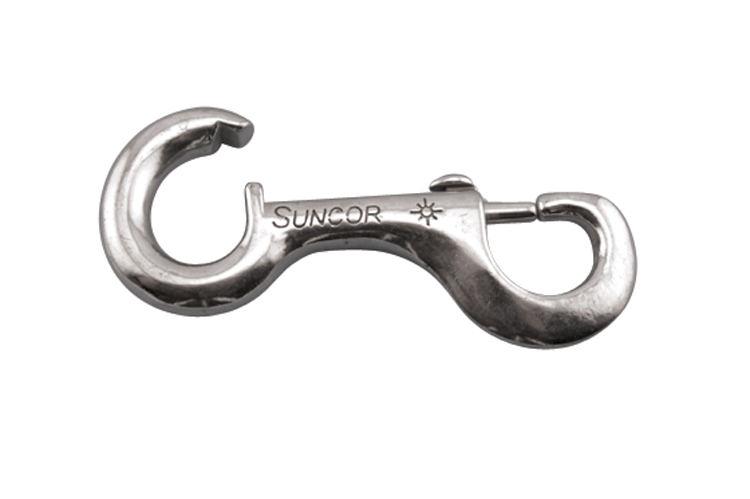

The US Navy Bolt Snap is usually attached to chain with the open end and is then bent closed. It is made from grade 316 stainless steel for maximum corrosion resistance and durability. These stainless steel snaps are ideal for various marine applications.
Unit of Measure

Specifications

Brands

 N/A Suncor

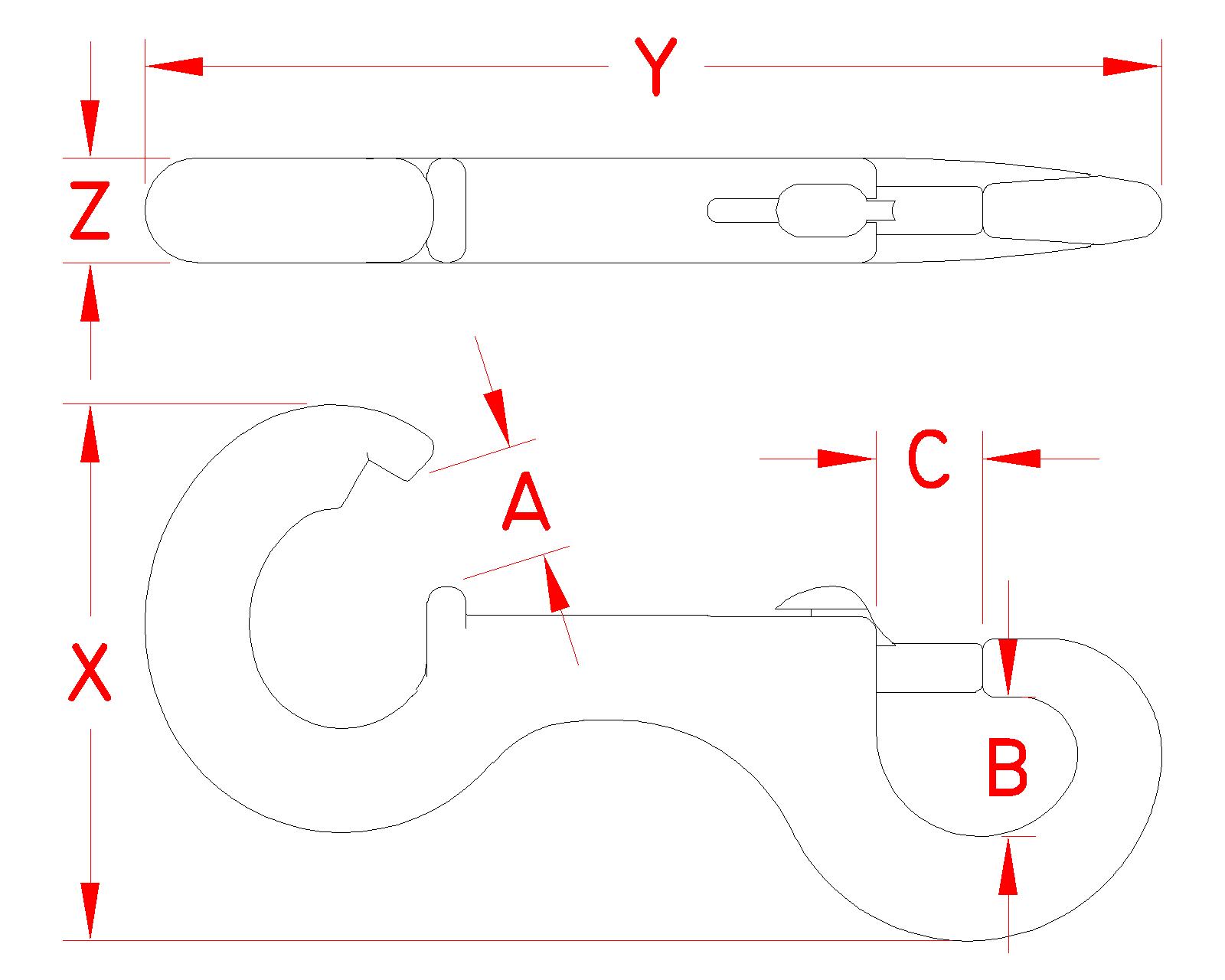

Dimension A

 N/A 0.72 in

Dimension B

 N/A 0.93 in

Dimension C

 N/A 0.63 in

Working Load Limit (WLL)

 N/A 1000 lb

Dimension X

 N/A 2.77 in

Dimension Y

 N/A 6.55 in

Dimension Z

 N/A 0.68 in

Material

 N/A 316 Stainless Steel

Fabrication Type

 N/A Precision Cast

Made In

 N/A Import

Suncor Exclusive

 N/A Yes

Weight

 N/A 1.06 lb

Note

 N/A Product is usually attached to chain with open end, which is then bent closed.
