  • Mil. Spec Double Shank Balls

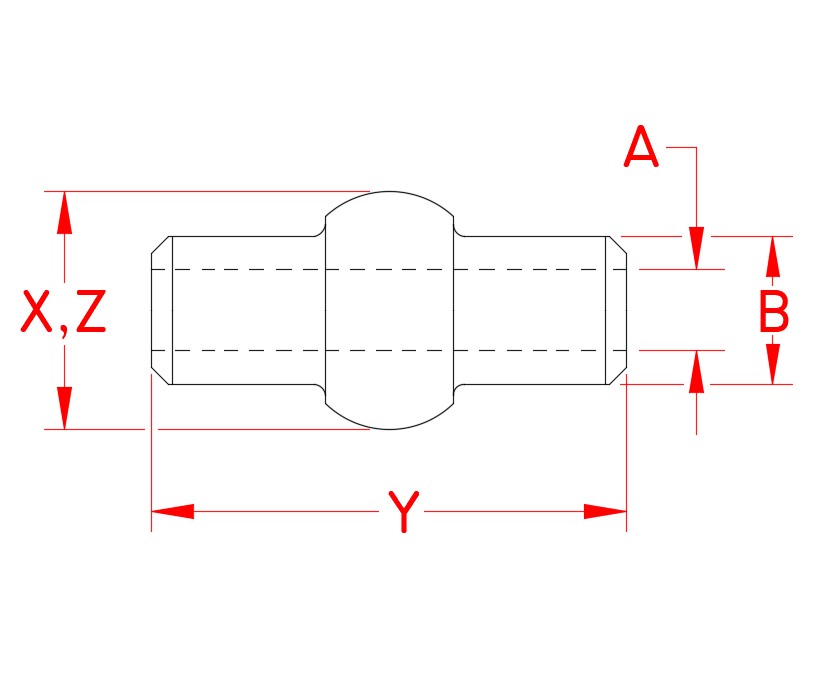

  • Line Drawing for Mil. Spec Double Shank Balls
These stainless steel swage fittings meet mil. spec #MS20663. They have met all quality and testing requirements per MIL-DTL-781 and are approved for listing in QPL-781. The double shank ball is offered in a variety of sizes, ranging from 1/16" to 5/16".
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension X

Dimension Y

Dimension Z

Material

N/A Mil. Spec Double Shank Ball N/A 0.21 in N/A 0.36 in N/A 0.21 in N/A Stainless Steel
N/A Mil. Spec Double Shank Ball N/A 0.28 in N/A 0.53 in N/A 0.28 in N/A Stainless Steel
N/A Mil. Spec Double Shank Ball N/A 0.35 in N/A 0.69 in N/A 0.35 in N/A Stainless Steel
N/A Mil. Spec Double Shank Ball N/A 0.42 in N/A 0.85 in N/A 0.42 in N/A Stainless Steel
N/A Mil. Spec Double Shank Ball N/A 0.49 in N/A 1.01 in N/A 0.49 in N/A Stainless Steel
N/A Mil. Spec Double Shank Ball N/A 0.56 in N/A 1.18 in N/A 0.56 in N/A Stainless Steel
N/A Mil. Spec Double Shank Ball N/A 0.62 in N/A 1.34 in N/A 0.62 in N/A Stainless Steel
N/A Mil. Spec Double Shank Ball N/A 0.76 in N/A 1.66 in N/A 0.76 in N/A Stainless Steel
