  • PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushings
  • PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushings - 2

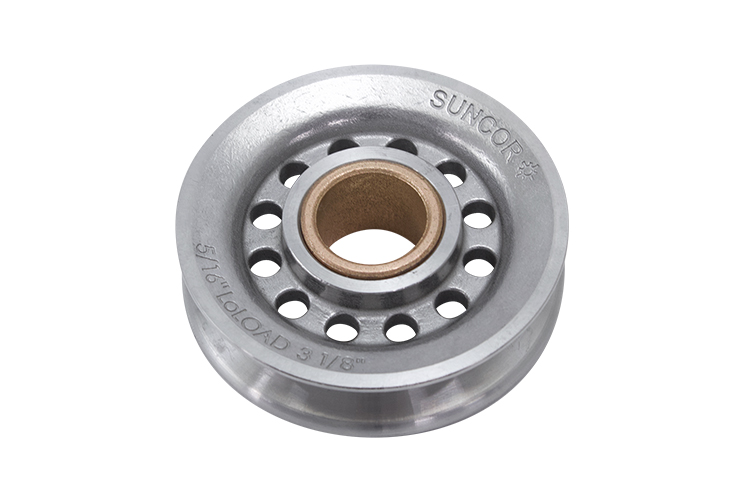

The PullPro™ Rope Sheave, Bushing features a bronze bushing and can fit rope sizes ranging from 3/8" to 1" to ensure a perfect fit for every project. This sheave is made from grade 316 stainless steel for maximum corrosion resistance and durability. The bushing is made from lead free oil impregnated bronze for high load, slow turning applications. The bushing has a thick wall to support side load wear and reduce friction. PullPro™ premium stainless steel sheaves are versatile, robust, safe and long-lasting. The variety of sizes and hub styles allow the user to select a sheave tailored to the specific product application and the design provides optimal weight, groove diameter and throat angle.
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Rope Size A

Dimension B

Dimension C

Dimension D

Working Load Limit (WLL)

N/A 3/8 to 7/16 in N/A 0.25 in N/A 0.51 in N/A 1.65 in N/A 1000 lb
N/A 3/8 to 7/16 in N/A 0.38 in N/A 0.51 in N/A 1.65 in N/A 1000 lb
N/A 1/2 in N/A 0.31 in N/A 0.63 in N/A 2.05 in N/A 1500 lb
N/A 1/2 in N/A 0.38 in N/A 0.63 in N/A 2.05 in N/A 1500 lb
N/A 1/2 in N/A 0.50 in N/A 0.63 in N/A 2.05 in N/A 1500 lb
N/A 1/2 in N/A 0.63 in N/A 0.63 in N/A 2.05 in N/A 1500 lb
N/A 5/8 in N/A 0.50 in N/A 0.77 in N/A 2.53 in N/A 3000 lb
N/A 5/8 in N/A 0.63 in N/A 0.77 in N/A 2.53 in N/A 3000 lb
N/A 5/8 in N/A 0.75 in N/A 0.77 in N/A 2.53 in N/A 3000 lb
N/A 5/8 in N/A 0.88 in N/A 0.77 in N/A 2.53 in N/A 3000 lb
N/A 3/4 in N/A 0.63 in N/A 0.92 in N/A 3.02 in N/A 4500 lb
N/A 3/4 in N/A 0.75 in N/A 0.92 in N/A 3.02 in N/A 4500 lb
N/A 3/4 in N/A 0.88 in N/A 0.92 in N/A 3.02 in N/A 4500 lb
N/A 3/4 in N/A 1.13 in N/A 0.92 in N/A 3.02 in N/A 4500 lb
N/A 1 in N/A 0.75 in N/A 1.26 in N/A 4.00 in N/A 5500 lb
N/A 1 in N/A 0.88 in N/A 1.26 in N/A 4.00 in N/A 5500 lb
N/A 1 in N/A 1.00 in N/A 1.26 in N/A 4.00 in N/A 5500 lb
N/A 1 in N/A 1.25 in N/A 1.26 in N/A 4.00 in N/A 5500 lb
