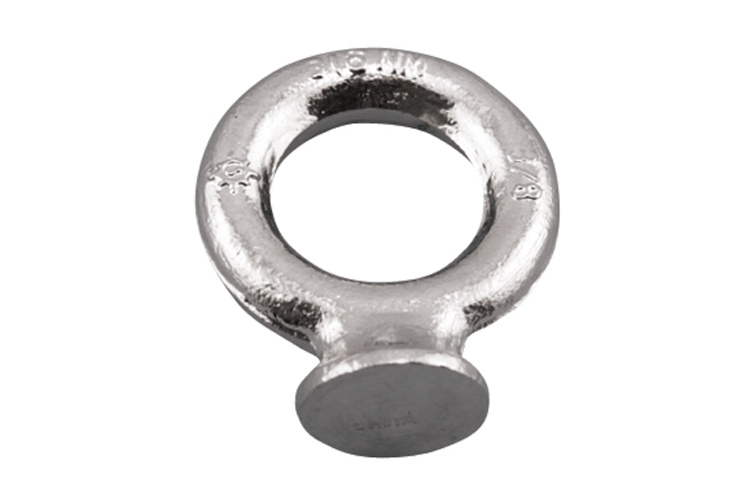

  • 316-NM Stainless Steel Pad Eyes

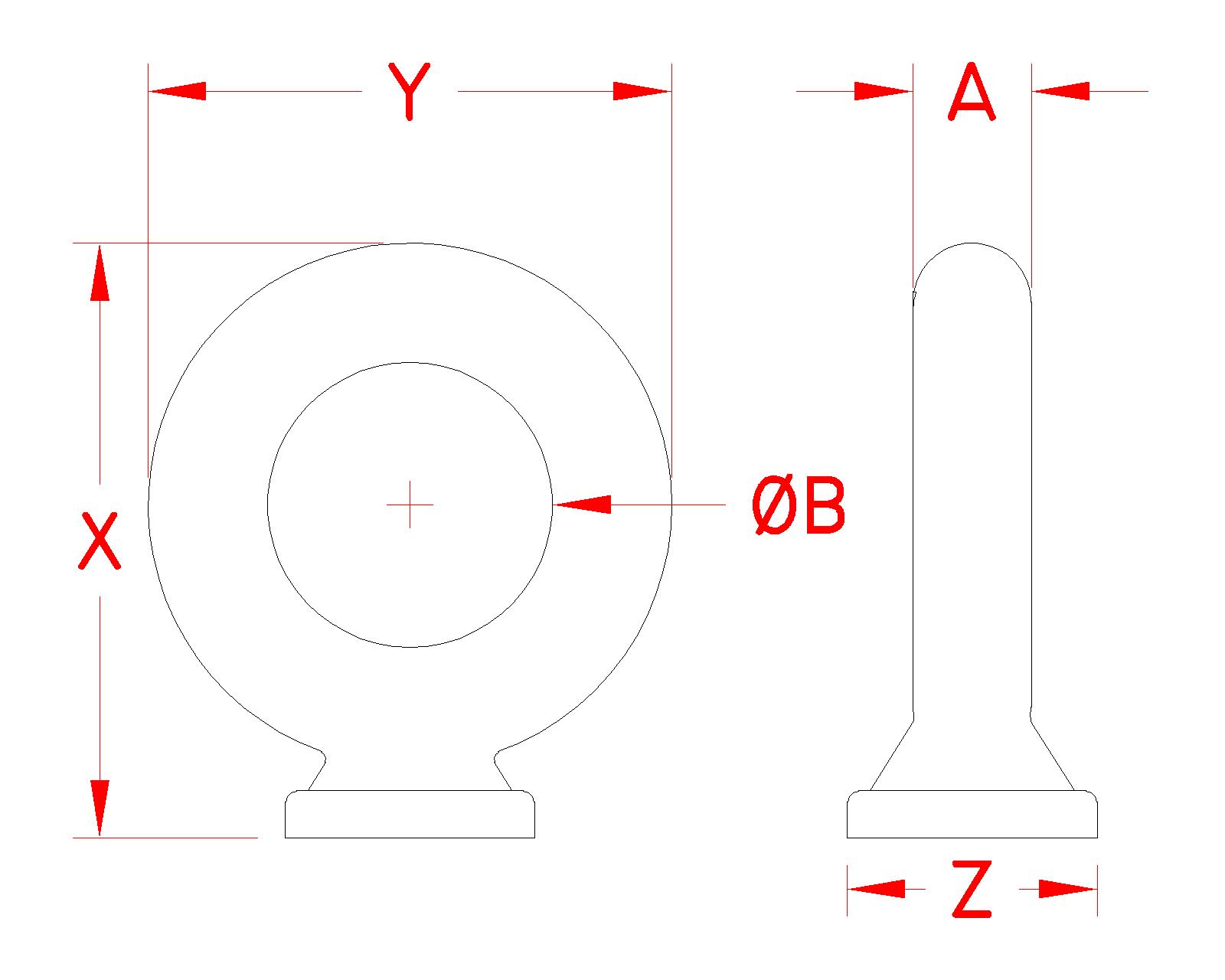

  • Line Drawing for Pad Eyes
The Pad Eye is offered in a variety of sizes from 3/16" to 3/4" and is ideal for marine, industrial, architectural, OEM and government applications. The working load limit is dependent on the quality of the welding and attachment structure. The underside is machined for a perfect seating.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension A

Dimension B

Dimension X

Material

N/A 316-NM Stainless Steel Pad Eye N/A 3/16 in N/A 0.50 in N/A 1.06 in N/A 316-NM Stainless Steel
N/A 316-NM Stainless Steel Pad Eye N/A 1/4 in N/A 0.63 in N/A 1.31 in N/A 316-NM Stainless Steel
N/A 316-NM Stainless Steel Pad Eye N/A 5/16 in N/A 0.75 in N/A 1.56 in N/A 316-NM Stainless Steel
N/A 316-NM Stainless Steel Pad Eye N/A 3/8 in N/A 1.00 in N/A 2.00 in N/A 316-NM Stainless Steel
N/A 316-NM Stainless Steel Pad Eye N/A 1/2 in N/A 1.25 in N/A 2.50 in N/A 316-NM Stainless Steel
N/A 316-NM Stainless Steel Pad Eye N/A 5/8 in N/A 1.50 in N/A 3.25 in N/A 316-NM Stainless Steel
N/A 316-NM Stainless Steel Pad Eye N/A 3/4 in N/A 1.75 in N/A 3.78 in N/A 316-NM Stainless Steel
