  • "C" Connecting Links

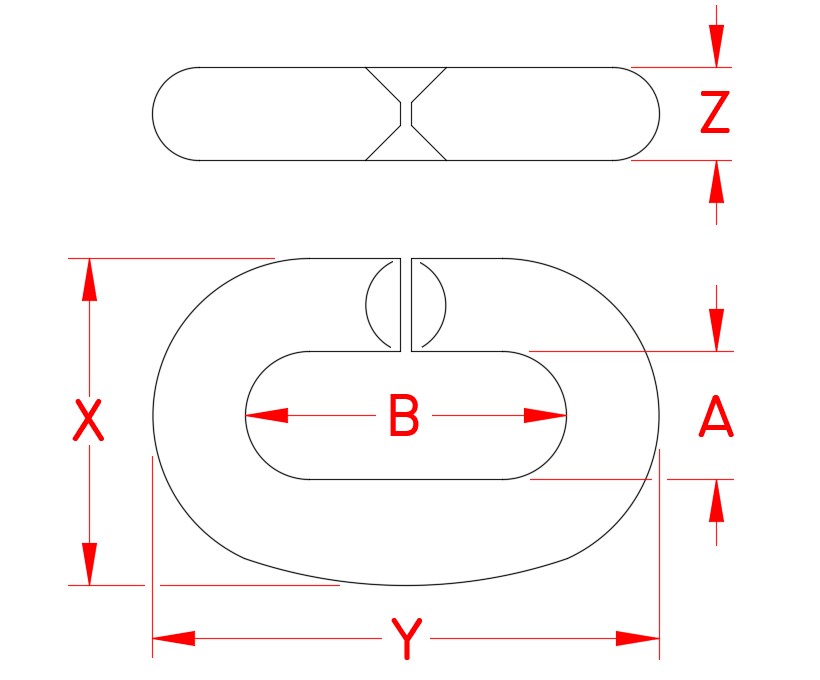

  • Line Drawing for "C" Connecting Links

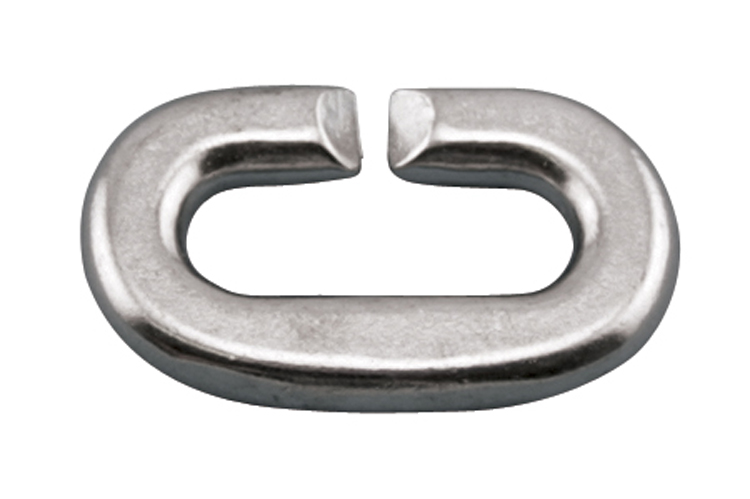

The "C" Connecting Links are primarily used to connect two chains or a chain to an end component. Quick connect and disconnect are achieved by turning the links 90 degrees to each other. These stainless steel links are made from 316 stainless steel for maximum corrosion resistance and durability.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Working Load Limit (WLL)

Material

N/A "C" Connecting Link N/A 0.31 in N/A 0.75 in N/A 160 lb N/A 316 Stainless Steel
N/A "C" Connecting Link N/A 0.37 in N/A 0.87 in N/A 300 lb N/A 316 Stainless Steel
N/A "C" Connecting Link N/A 0.43 in N/A 1.25 in N/A 400 lb N/A 316 Stainless Steel
N/A "C" Connecting Link N/A 0.56 in N/A 1.50 in N/A 500 lb N/A 316 Stainless Steel
N/A "C" Connecting Link N/A 0.75 in N/A 2.00 in N/A 700 lb N/A 316 Stainless Steel
N/A "C" Connecting Link N/A 0.87 in N/A 2.50 in N/A 1200 lb N/A 316 Stainless Steel
N/A "C" Connecting Link N/A 1.12 in N/A 3.00 in N/A 2000 lb N/A 316 Stainless Steel
