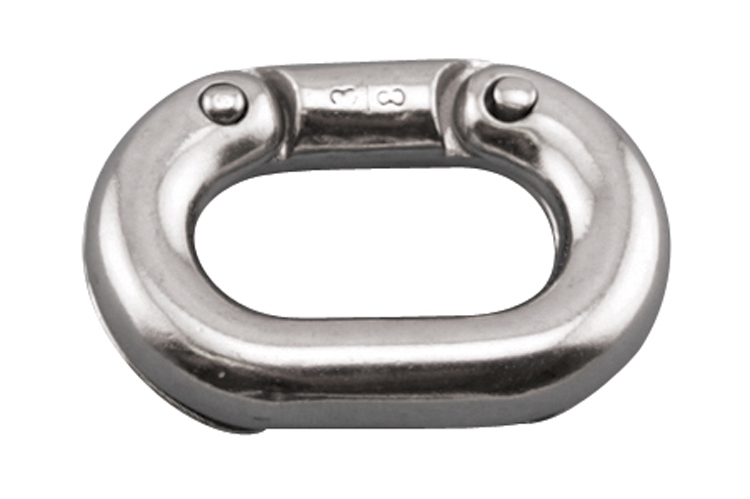

  • Cast Connecting Links

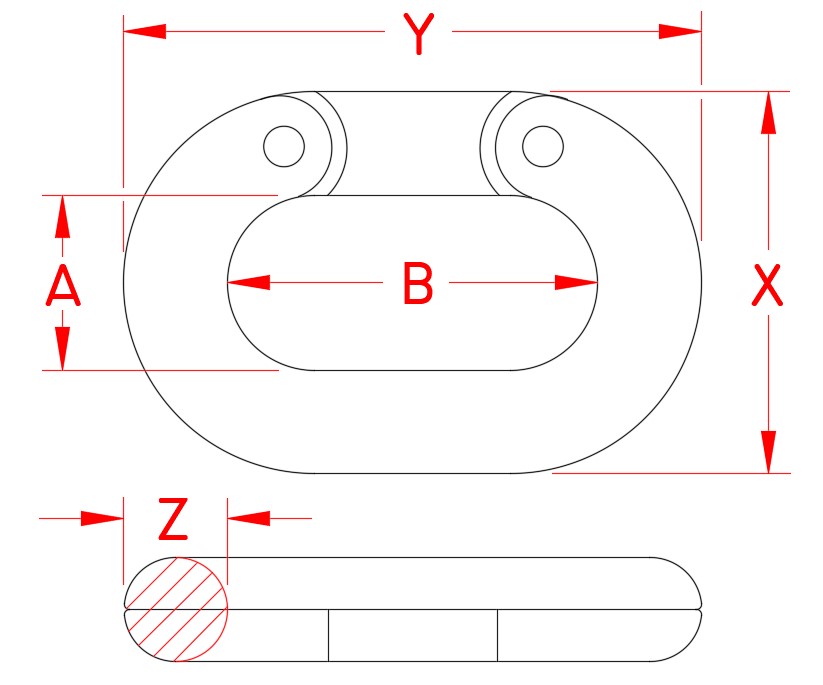

  • Line Drawing for Cast Connecting Links
The Cast Connecting Links are primarily used to connect two chains or a chain to an end component. These stainless steel connecting links are cast and made from grade 316 stainless steel for maximum corrosion resistance and durability. Do not use the connecting link without riveting the pins securely.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Working Load Limit (WLL)

Material

N/A Cast Connecting Link N/A 0.35 in N/A 0.70 in N/A 400 lb N/A 316 Stainless Steel
N/A Cast Connecting Link N/A 0.43 in N/A 0.84 in N/A 600 lb N/A 316 Stainless Steel
N/A Cast Connecting Link N/A 0.48 in N/A 0.95 in N/A 1000 lb N/A 316 Stainless Steel
N/A Cast Connecting Link N/A 0.60 in N/A 1.15 in N/A 1500 lb N/A 316 Stainless Steel
N/A Cast Connecting Link N/A 0.75 in N/A 1.45 in N/A 2000 lb N/A 316 Stainless Steel
N/A Cast Connecting Link N/A 0.95 in N/A 1.90 in N/A 4,000 lb N/A 316 Stainless Steel
