  • Hammerlock Links

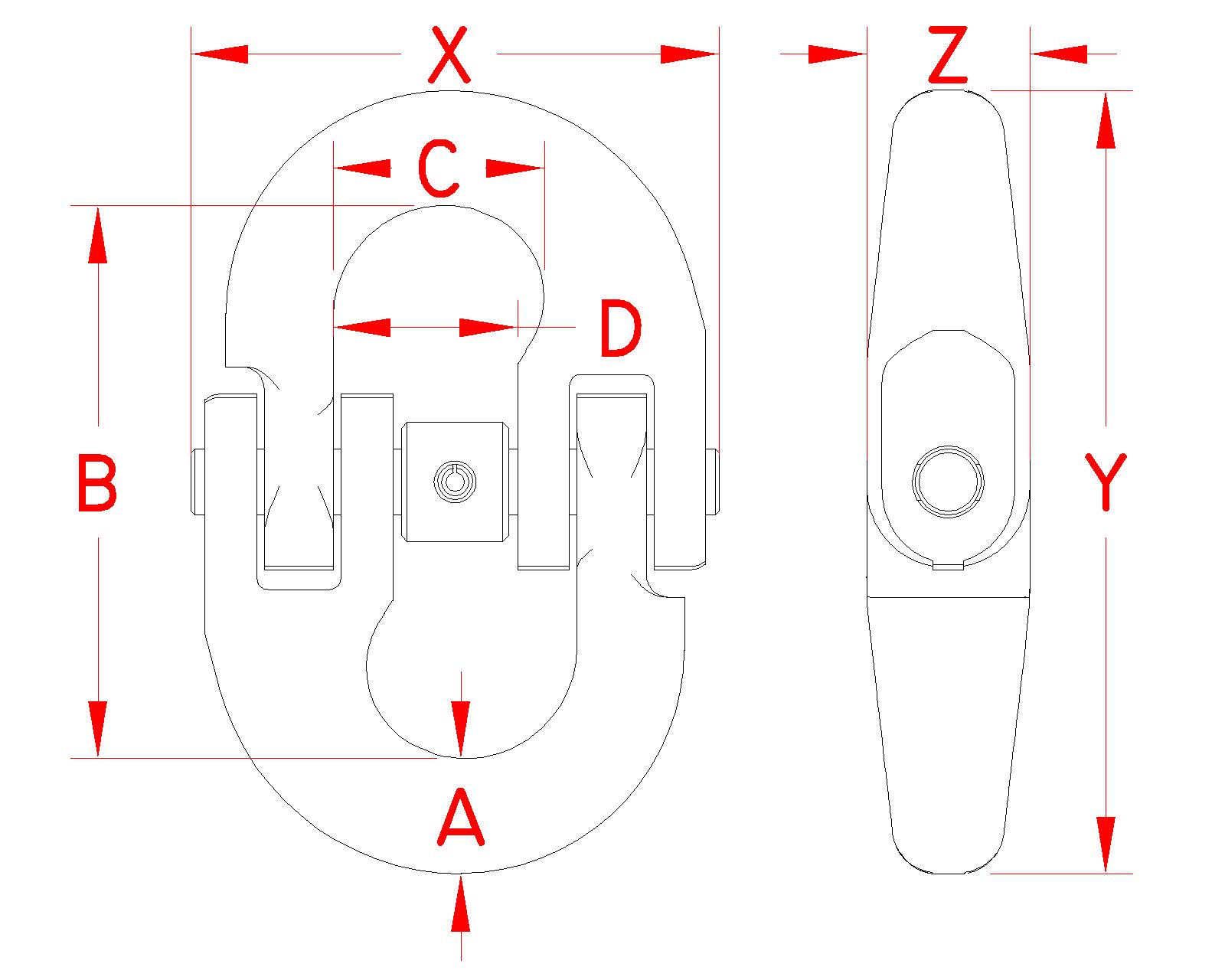

  • Line Drawing for Hammerlock Links

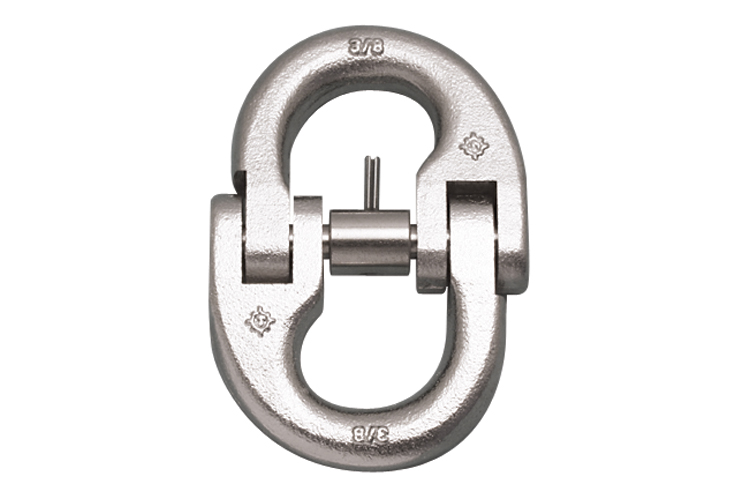

The Hammerlock Links are drop forged and load rated. They are made from grade 316-NM stainless steel for maximum corrosion resistance and durability. Suncor’s Hammerlock Links are the only choice when high strength is essential to your application. Replacement pin sets are available and include the pin, bushing and roll pin.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Size

Dimension A

Dimension B

Material

N/A Hammerlock Link N/A 3/16 in N/A 0.30 in N/A 1.44 in N/A 316-NM Stainless Steel
N/A Hammerlock Link N/A 1/4 in N/A 0.35 in N/A 1.88 in N/A 316-NM Stainless Steel
N/A Hammerlock Link N/A 5/16 in N/A 0.42 in N/A 2.16 in N/A 316-NM Stainless Steel
N/A Hammerlock Link N/A 3/8 in N/A 0.53 in N/A 2.80 in N/A 316-NM Stainless Steel
N/A Hammerlock Link N/A 1/2 in N/A 0.65 in N/A 3.48 in N/A 316-NM Stainless Steel
N/A Hammerlock Link N/A 5/8 in N/A 0.86 in N/A 4.01 in N/A 316-NM Stainless Steel
