  • Master Links with Legs

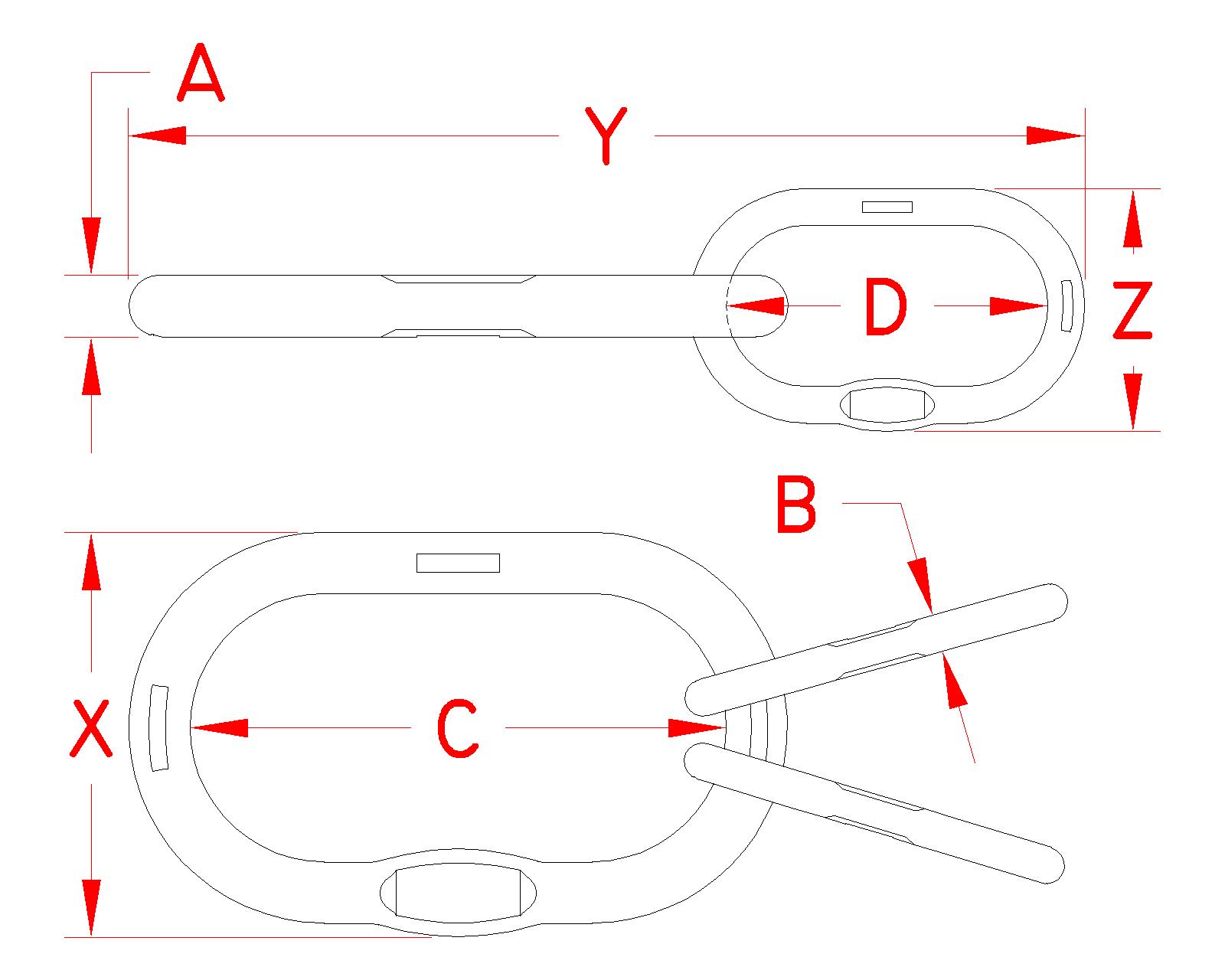

  • Line Drawing for Master Links with Legs

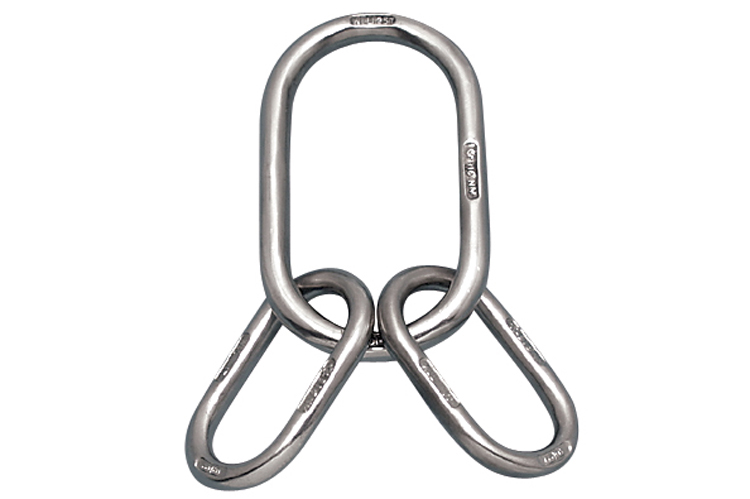

The Master Link with Legs is made from 316 stainless steel for maximum corrosion resistance and durability. These stainless steel Master Links with Legs are used for applications where chain slings are required.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Master Link with Legs N/A 1/2 in N/A 3/8 in N/A 5.00 in N/A 316-NM Stainless Steel
N/A Master Link with Legs N/A 5/8 in N/A 1/2 in N/A 6.00 in N/A 316-NM Stainless Steel
N/A Master Link with Legs N/A 3/4 in N/A 5/8 in N/A 6.50 in N/A 316-NM Stainless Steel
N/A Master Link with Legs N/A 1 in N/A 3/4 in N/A 7.00 in N/A 316-NM Stainless Steel
N/A Master Link with Legs N/A 1-1/4 in N/A 1 in N/A 8.75 in N/A 316-NM Stainless Steel
