  • Square Quick Links

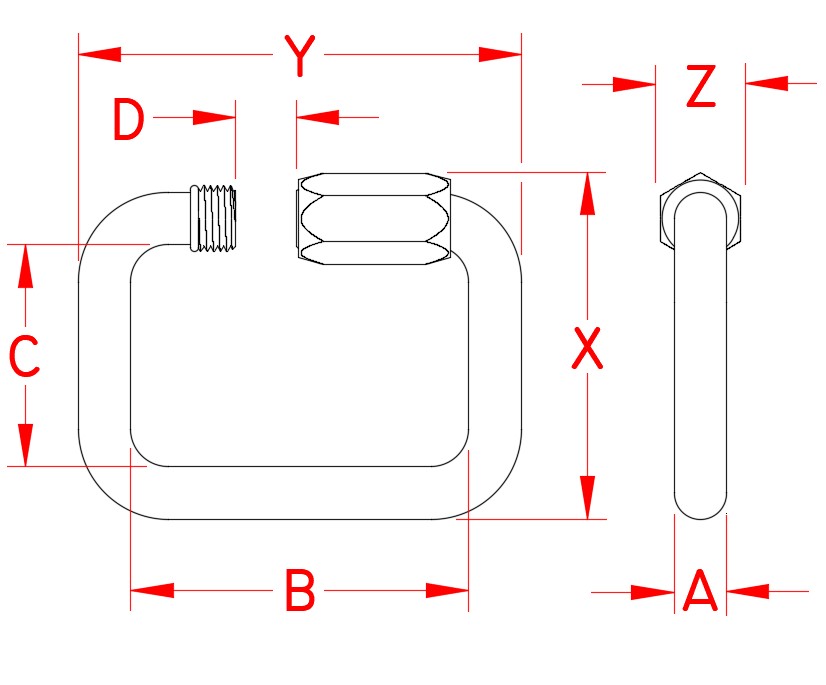

  • Line Drawing for Square Quick Links

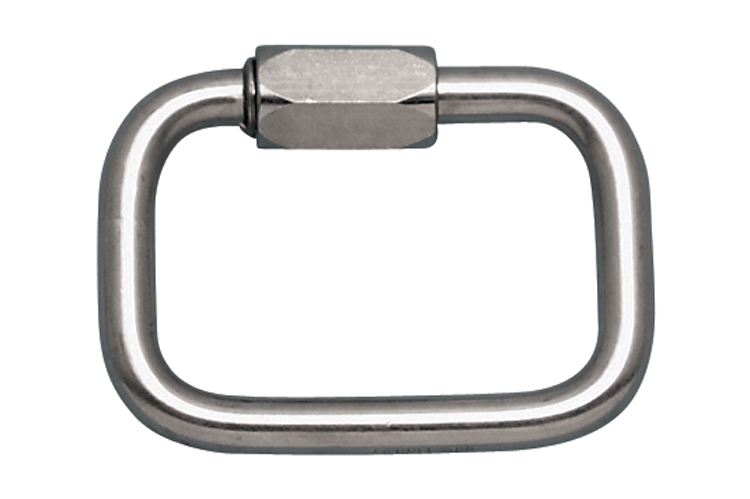

The Square Quick Link is available in sizes ranging from 1/8" to 5/8" to ensure a perfect fit for every project. This link is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and linking applications.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Square Quick Link N/A 1/8 in N/A 0.88 in N/A 1.08 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 5/32 in N/A 0.98 in N/A 1.23 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 3/16 in N/A 1.09 in N/A 1.47 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 1/4 in N/A 1.22 in N/A 1.69 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 9/32 in N/A 1.34 in N/A 1.95 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 5/16 in N/A 1.45 in N/A 2.17 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 3/8 in N/A 1.58 in N/A 2.36 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 7/16 in N/A 1.69 in N/A 2.70 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 1/2 in N/A 1.97 in N/A 3.08 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 9/16 in N/A 2.25 in N/A 3.50 in N/A 316 Stainless Steel
N/A Square Quick Link N/A 5/8 in N/A 2.52 in N/A 4.06 in N/A 316 Stainless Steel
