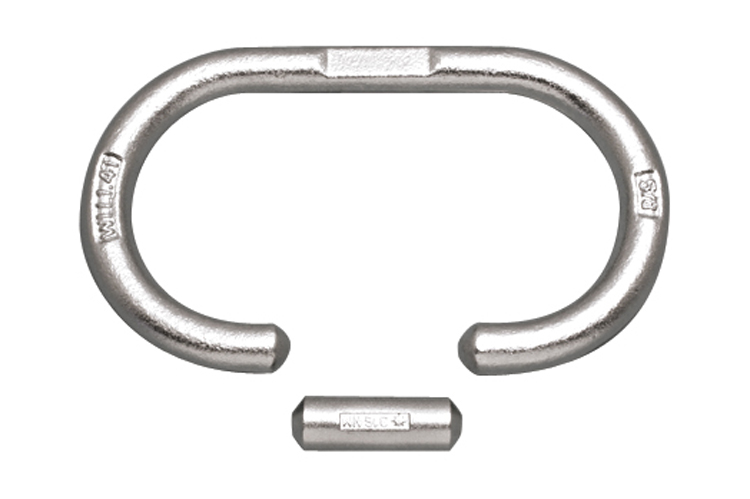

  • Weld Master Links

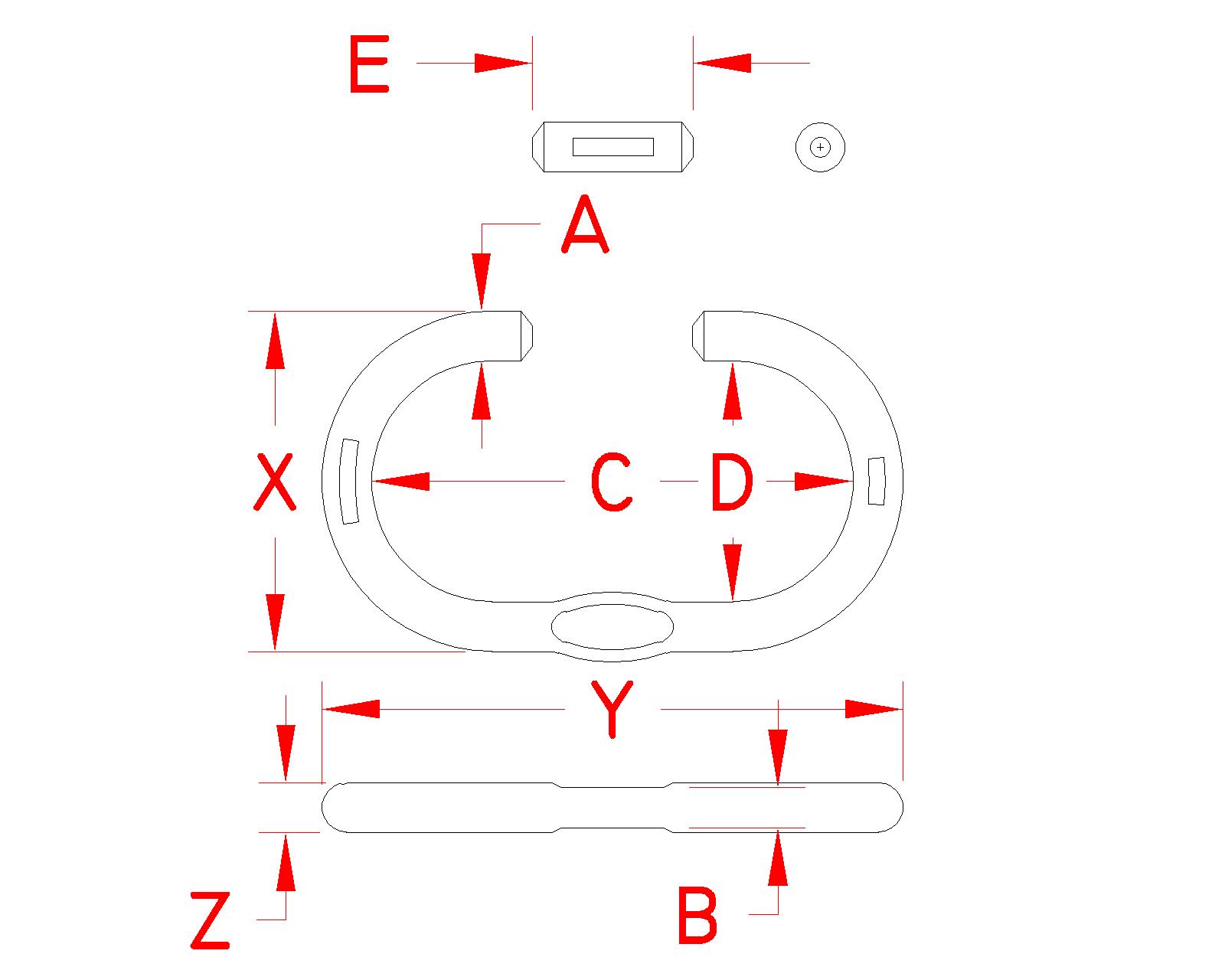

  • Line Drawing for Weld Master Links
The drop forged Master Link was designed for easy creation of custom slings. The link features a 1" to 3" gap to enable the addition of chain, links, thimbles. etc. Before creating any assembly, be sure to determine the weight of the load and choose components with suitable working load limits.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Weld Master Link N/A 3/8 in N/A 0.28 in N/A 3.00 in N/A 316 Stainless Steel
N/A Weld Master Link N/A 1/2 in N/A 0.38 in N/A 5.00 in N/A 316 Stainless Steel
N/A Weld Master Link N/A 5/8 in N/A 0.50 in N/A 6.00 in N/A 316 Stainless Steel
N/A Weld Master Link N/A 3/4 in N/A 0.56 in N/A 6.50 in N/A 316 Stainless Steel
N/A Weld Master Link N/A 1 in N/A 0.75 in N/A 7.00 in N/A 316 Stainless Steel
N/A Weld Master Link N/A 1-1/4 in N/A 0.94 in N/A 8.75 in N/A 316 Stainless Steel
