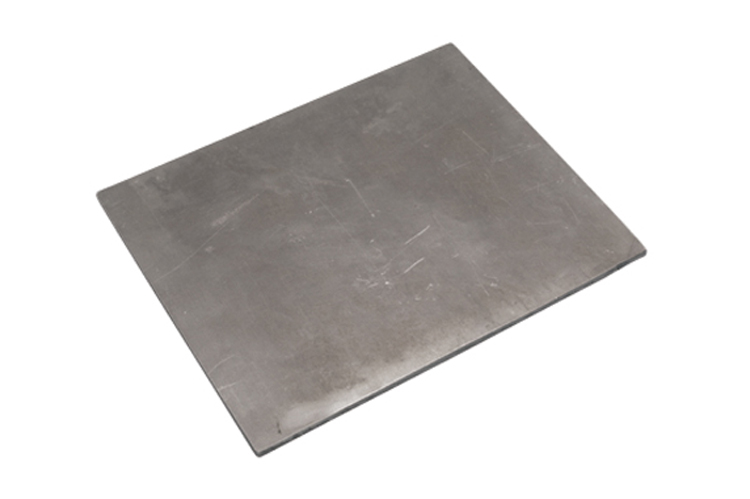

  • Backing Plates

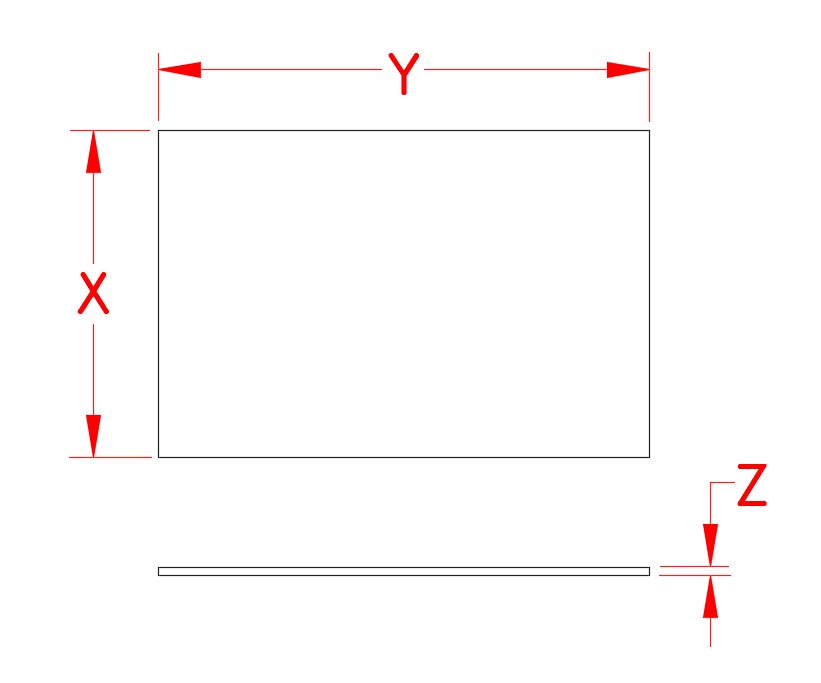

  • Line Drawing for Backing Plates
The Backing Plate is used in conjunction with cleats, chocks, etc. It provides maximum load distribution. This backing plate is made from grade 304 stainless steel for maximum corrosion resistance and durability. It can be customized upon request.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension X

Dimension Y

Dimension Z

Material

N/A Backing Plate N/A 4.00 in N/A 6.00 in N/A 0.09 in N/A 316 Stainless Steel
N/A Backing Plate N/A 6.00 in N/A 8.00 in N/A 0.09 in N/A 316 Stainless Steel
N/A Backing Plate N/A 8.00 in N/A 12.00 in N/A 0.09 in N/A 316 Stainless Steel
