  • Swivel Pad Eyes

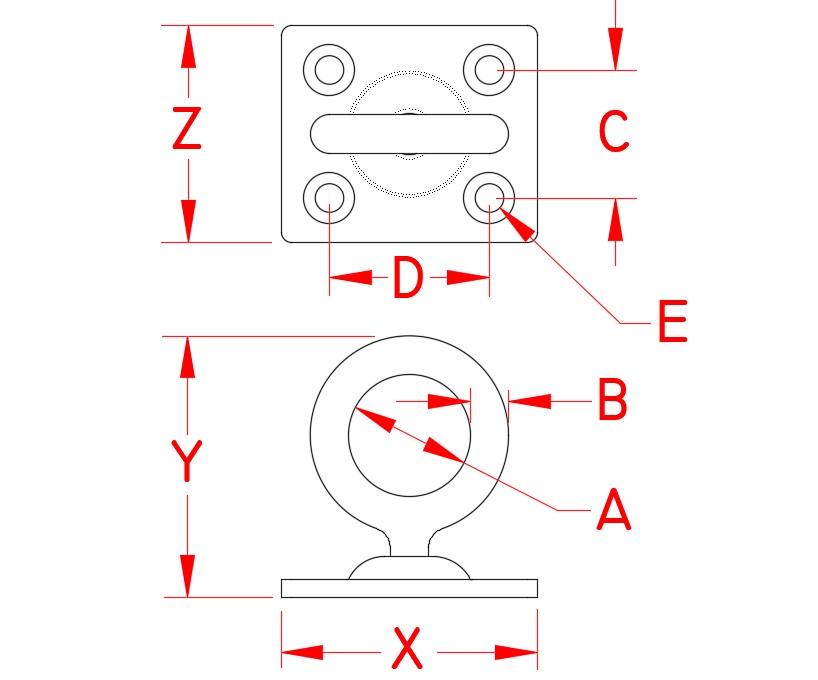

  • Line Drawing for Swivel Pad Eyes
The Swivel Pad Eye features a ring that rotated 360 degrees and is easily installed using 5/32" or 3/16" screws. It is ideal for marine, industrial, architectural, OEM and government applications. This pad eye is made from grade 304 stainless steel for maximum corrosion resistance and durability.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Swivel Pad Eye N/A 0.60 in N/A 0.19 in N/A 0.72 in N/A 316 Stainless Steel
N/A Swivel Pad Eye N/A 0.75 in N/A 0.25 in N/A 0.78 in N/A 316 Stainless Steel
N/A Swivel Pad Eye N/A 0.76 in N/A 0.31 in N/A 0.99 in N/A 316 Stainless Steel
