  • 30 Degree Rectangular Bases

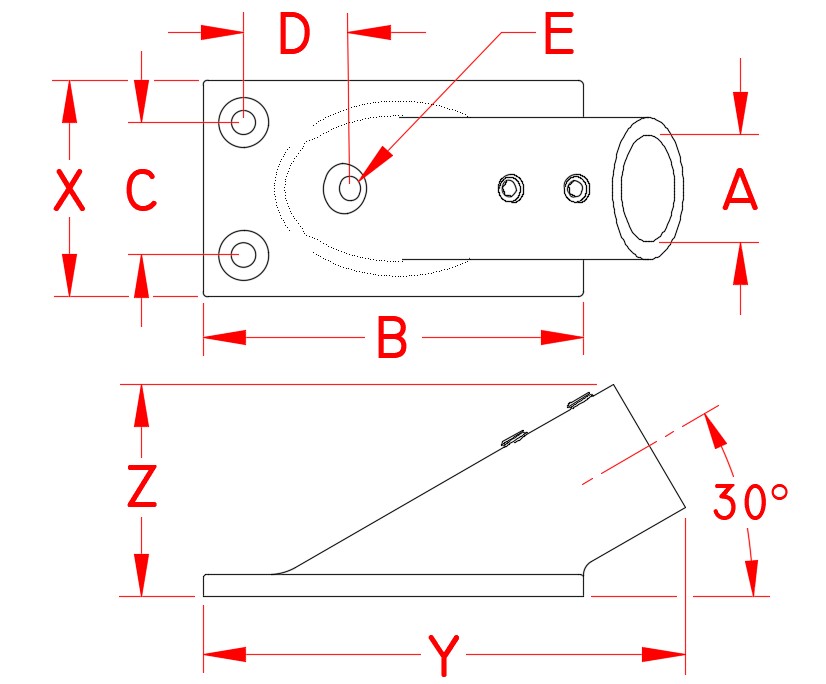

  • Line Drawing for 30 Degree Rectangular Bases

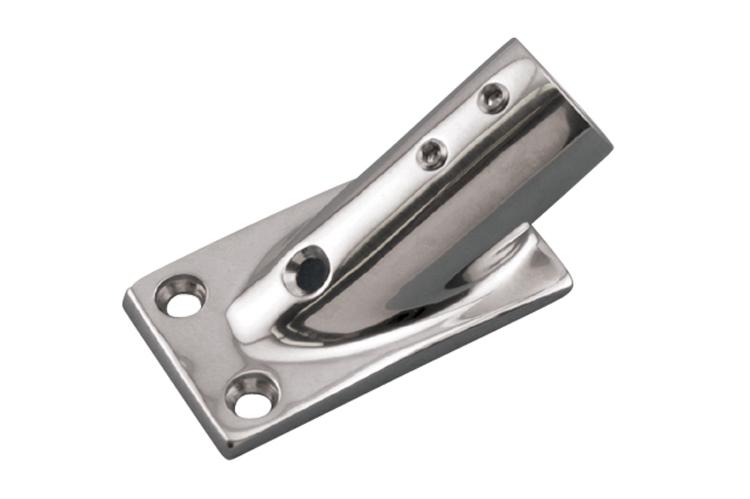

The Rectangular Base features a 30 degree angle and two set screws for quick and easy installation. This stanchion base is made from grade 316 stainless steel for maximum corrosion resistance and durability. These bases are ideal for sailboat and powerboat railings.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A 30 Degree Rectangular Base N/A 7/8 in N/A 3.04 in N/A 1.05 in N/A 316 Stainless Steel
N/A 30 Degree Rectangular Base N/A 1 in N/A 3.22 in N/A 1.12 in N/A 316 Stainless Steel
