  • Bow Shackles with Captive Pin
  • Line Drawing for Bow Shackles with Captive Pin

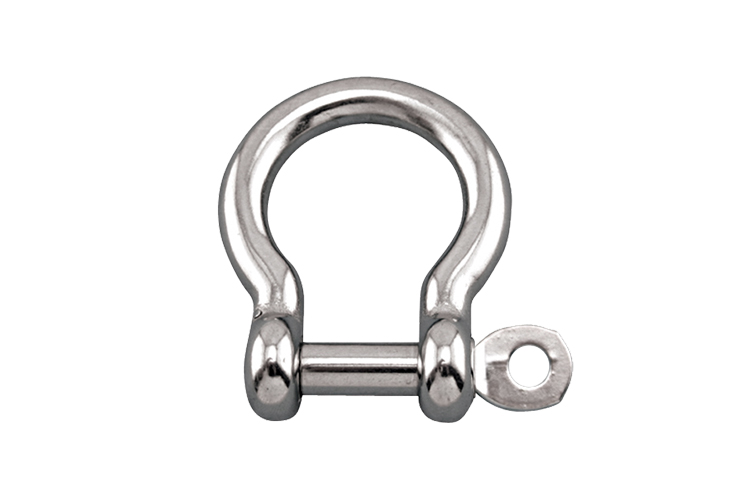

The Bow Shackle has a captive pin with a self-locking feature so that the pin will not back out. The pin is integral to the shackle body, it is not removable and will not fall out when open. The Bow Shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability. Available in sizes ranging from 5/32" to 15/32", it is ideal for marine applications because the pin can’t be accidentally dropped in the water.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Bow Shackle with Captive Pin N/A 5/32 in N/A 0.17 in N/A 0.33 in N/A 316 Stainless Steel
N/A Bow Shackle with Captive Pin N/A 3/16 in N/A 0.19 in N/A 0.43 in N/A 316 Stainless Steel
N/A Bow Shackle with Captive Pin N/A 1/4 in N/A 0.23 in N/A 0.48 in N/A 316 Stainless Steel
N/A Bow Shackle with Captive Pin N/A 5/16 in N/A 0.31 in N/A 0.67 in N/A 316 Stainless Steel
N/A Bow Shackle with Captive Pin N/A 3/8 in N/A 0.39 in N/A 0.79 in N/A 316 Stainless Steel
N/A Bow Shackle with Captive Pin N/A 1/2 in N/A 0.47 in N/A 0.94 in N/A 316 Stainless Steel
