  • Round Pin Anchor Shackles

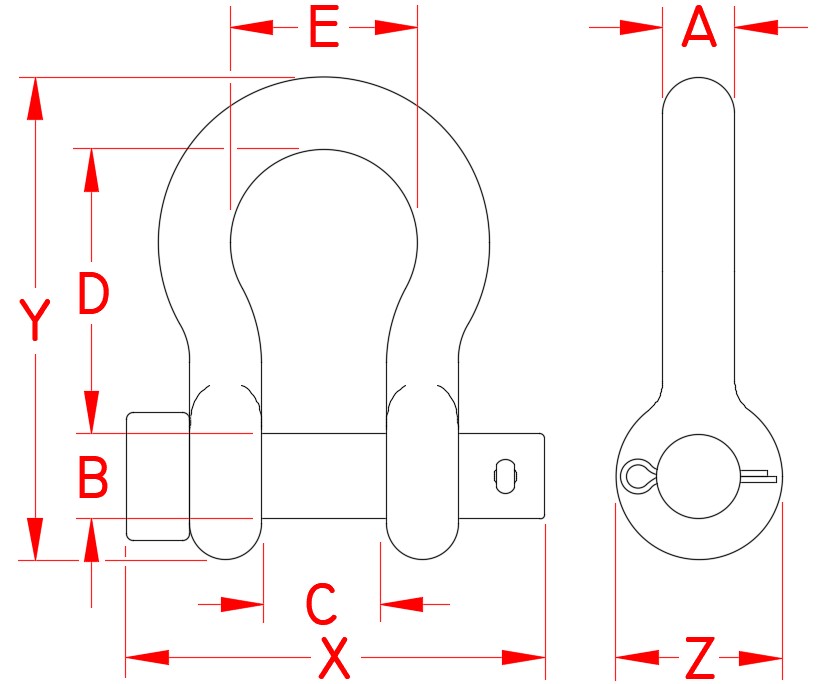

  • Line Drawing for Round Pin Anchor Shackles

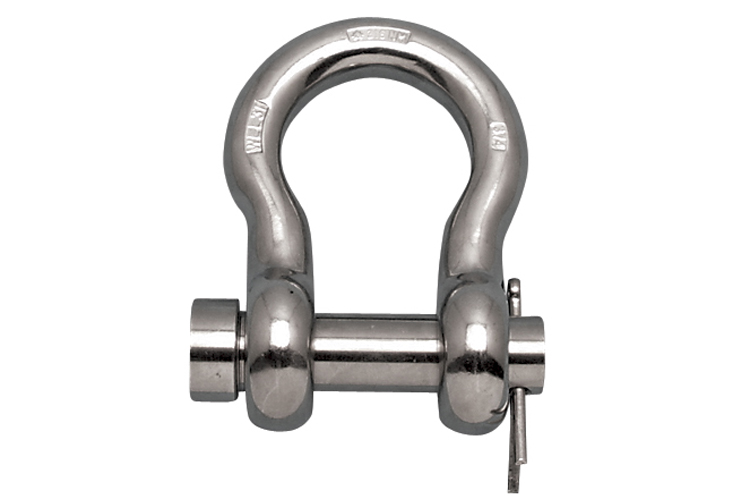

The Round Pin Anchor Shackle is made from grade 316 stainless steel and features an oversize round pin. Stainless steel Anchor Shackle is ideal for salt water applications. The Round Pin Anchor Shackle is primarily used to connect the anchor to the chain or anchor swivel. I/W/A Fed Spec RR-C-271, Type IVA, Class 1, (except 316 stainless steel).
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Round Pin Anchor Shackle N/A 1/4 in N/A 0.31 in N/A 0.47 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 5/16 in N/A 0.38 in N/A 0.53 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 3/8 in N/A 0.44 in N/A 0.66 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 7/16 in N/A 0.50 in N/A 0.72 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 1/2 in N/A 0.63 in N/A 0.82 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 5/8 in N/A 0.75 in N/A 1.02 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 3/4 in N/A 0.88 in N/A 1.25 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 7/8 in N/A 1.00 in N/A 1.48 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 1 in N/A 1.13 in N/A 1.70 in N/A 316-NM Stainless Steel
N/A Round Pin Anchor Shackle N/A 1-1/4 in N/A 1.38 in N/A 2.03 in N/A 316-NM Stainless Steel
