  • Stamped D Shackles

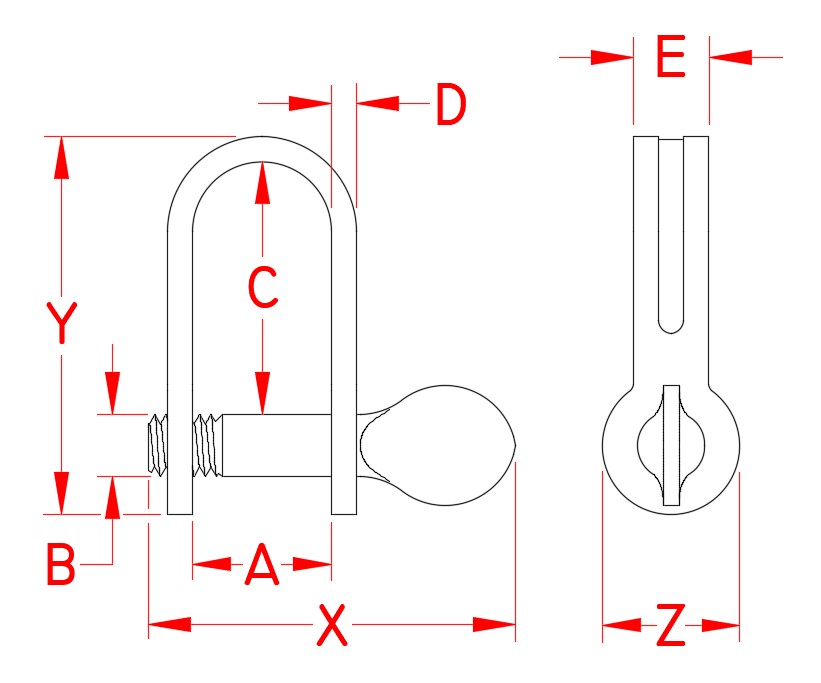

  • Line Drawing for Stamped D Shackles
The Stamped D Shackle features a screw pin and is offered in sizes ranging from 5/32" to 5/16". This D shackle is made from grade 304 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension X

Dimension Y

Dimension Z

Material

N/A Stamped D Shackle N/A 0.37 in N/A 0.92 in N/A 0.98 in N/A 304 Stainless Steel
N/A Stamped D Shackle N/A 0.42 in N/A 1.16 in N/A 1.15 in N/A 304 Stainless Steel
N/A Stamped D Shackle N/A 0.43 in N/A 1.38 in N/A 1.26 in N/A 304 Stainless Steel
