  • Straight D Shackles with Screw Pin
  • Line Drawing for Straight D Shackles with Screw Pin

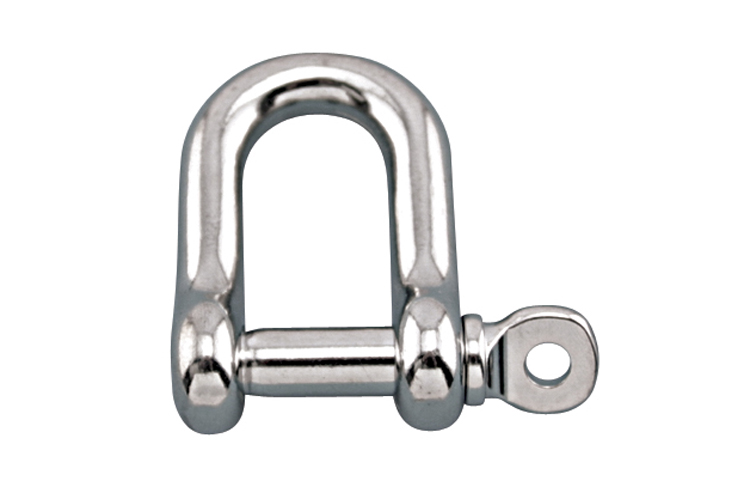

The Straight D Shackle features a screw pin and is offered in sizes ranging from 5/32" to 1-1/4". This D shackle is made from grade 316 stainless steel for maximum corrosion resistance, which is ideal for marine and industrial applications.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Straight D Shackle with Screw Pin N/A 5/32 in N/A 0.15 in N/A 0.31 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 3/16 in N/A 0.19 in N/A 0.45 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 1/4 in N/A 0.23 in N/A 0.48 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 5/16 in N/A 0.31 in N/A 0.67 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 3/8 in N/A 0.39 in N/A 0.78 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 15/32 in N/A 0.46 in N/A 0.95 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 1/2 in N/A 0.54 in N/A 1.09 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 5/8 in N/A 0.61 in N/A 1.25 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 3/4 in N/A 0.74 in N/A 1.46 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 7/8 in N/A 0.86 in N/A 1.70 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 1 in N/A 0.96 in N/A 1.95 in N/A 316 Stainless Steel
N/A Straight D Shackle with Screw Pin N/A 1-1/4 in N/A 1.25 in N/A 2.50 in N/A 316 Stainless Steel
