  • US Bolt Anchor Shackles

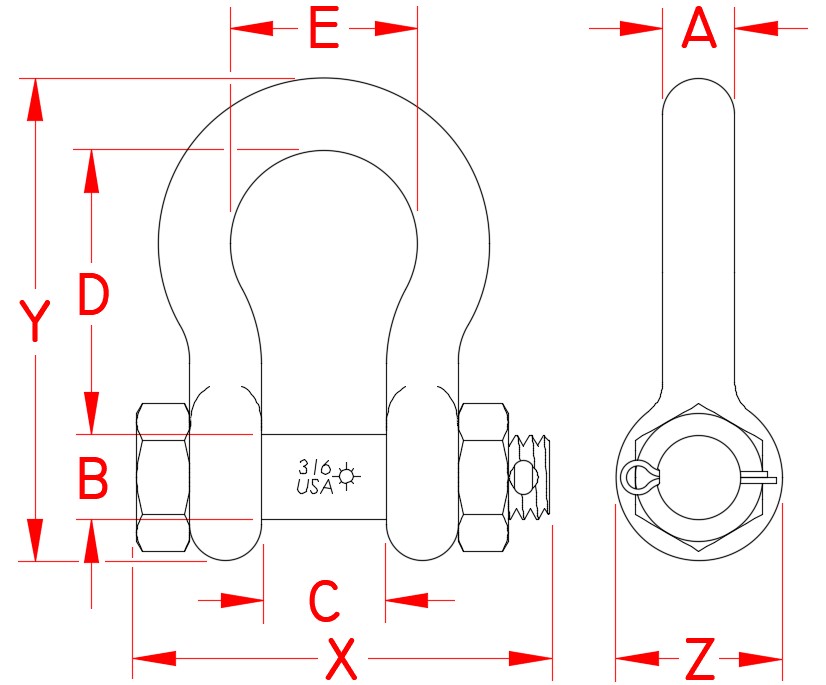

  • Line Drawing for US Bolt Anchor Shackles

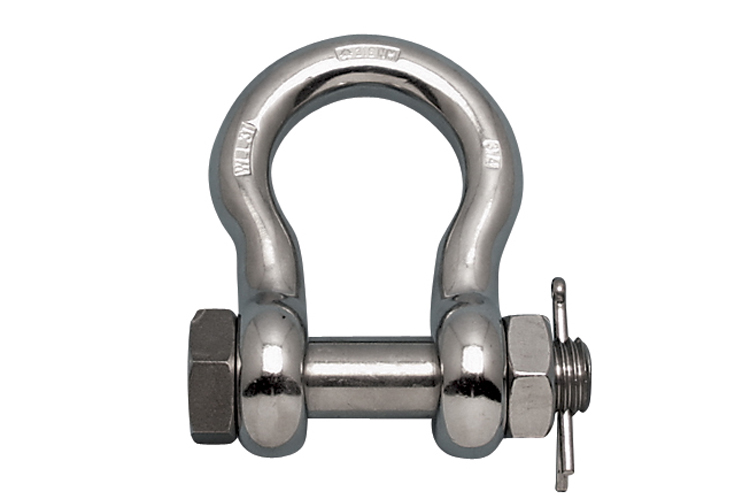

The US Bolt Anchor Shackle is made in the USA from grade 316 stainless steel and features an oversize bolt. Stainless steel anchor shackle with oversize bolt is ideal for salt water applications. The Bolt Anchor Shackle is primarily used to connect the anchor to the chain or anchor swivel. I/A/W Fed Spec RR-C-271, Type IVA, Class 3, (except 316 stainless steel).
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A US Bolt Anchor Shackle N/A 1/4 in N/A 0.31 in N/A 0.47 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 5/16 in N/A 0.38 in N/A 0.53 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 3/8 in N/A 0.44 in N/A 0.66 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 7/16 in N/A 0.50 in N/A 0.72 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 1/2 in N/A 0.63 in N/A 0.82 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 5/8 in N/A 0.75 in N/A 1.02 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 3/4 in N/A 0.88 in N/A 1.25 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 7/8 in N/A 1.00 in N/A 1.48 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 1 in N/A 1.13 in N/A 1.70 in N/A 316-NM Stainless Steel
N/A US Bolt Anchor Shackle N/A 1-1/4 in N/A 1.38 in N/A 2.03 in N/A 316-NM Stainless Steel
