  • Wide D Shackles with Screw Pin

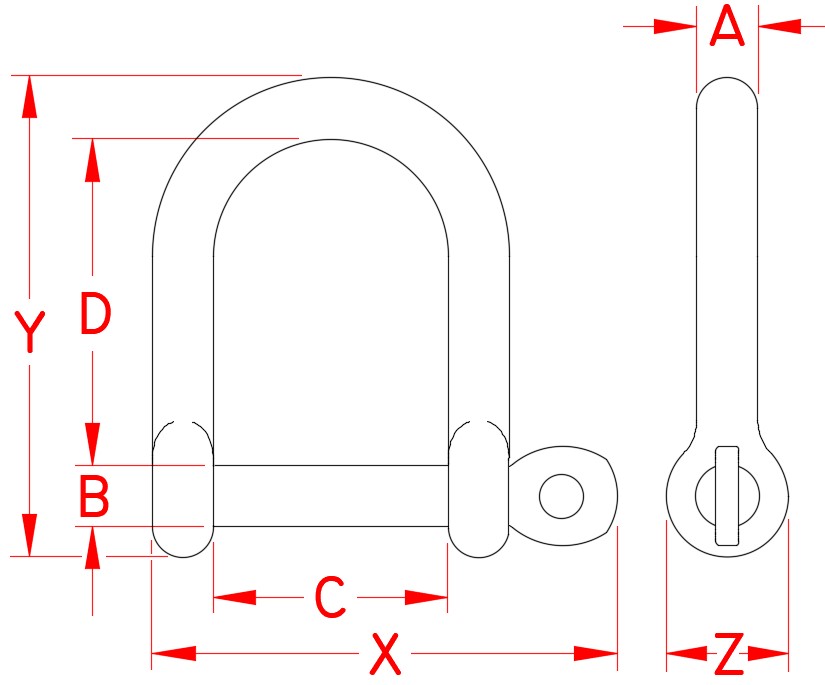

  • Line Drawing for Wide D Shackles with Screw Pin
The Wide D Shackle features a screw pin and is offered in sizes ranging from 1/4" to 1/2". This D shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Wide D Shackle with Screw Pin N/A 1/4 in N/A 0.24 in N/A 0.92 in N/A 316 Stainless Steel
N/A Wide D Shackle with Screw Pin N/A 5/16 in N/A 0.32 in N/A 1.11 in N/A 316 Stainless Steel
N/A Wide D Shackle with Screw Pin N/A 3/8 in N/A 0.40 in N/A 1.54 in N/A 316 Stainless Steel
N/A Wide D Shackle with Screw Pin N/A 1/2 in N/A 0.47 in N/A 1.89 in N/A 316 Stainless Steel
