  • Jaw Swivel Snap Shackles

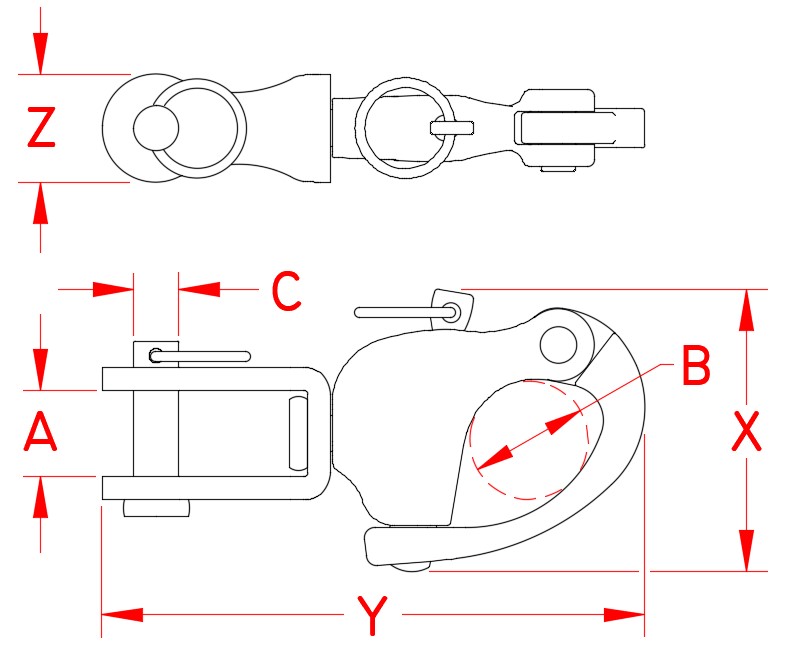

  • Line Drawing for Jaw Swivel Snap Shackles

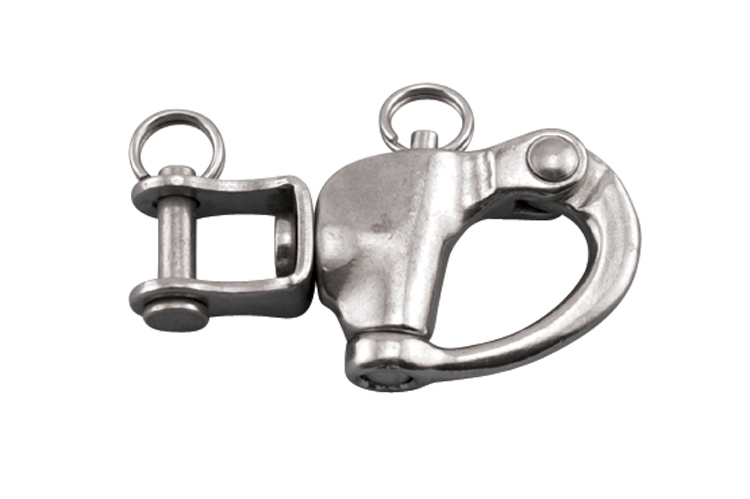

The Jaw Swivel Snap Shackle is available in a variety of sizes ranging from 2-3/4" to 5". This snap shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications. It features a removable jaw pin.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Jaw Swivel Snap Shackle N/A 0.54 in N/A 0.57 in N/A 0.24 in N/A 316 Stainless Steel
N/A Jaw Swivel Snap Shackle N/A 0.60 in N/A 0.75 in N/A 0.27 in N/A 316 Stainless Steel
N/A Jaw Swivel Snap Shackle N/A 0.87 in N/A 1.05 in N/A 0.48 in N/A 316 Stainless Steel
