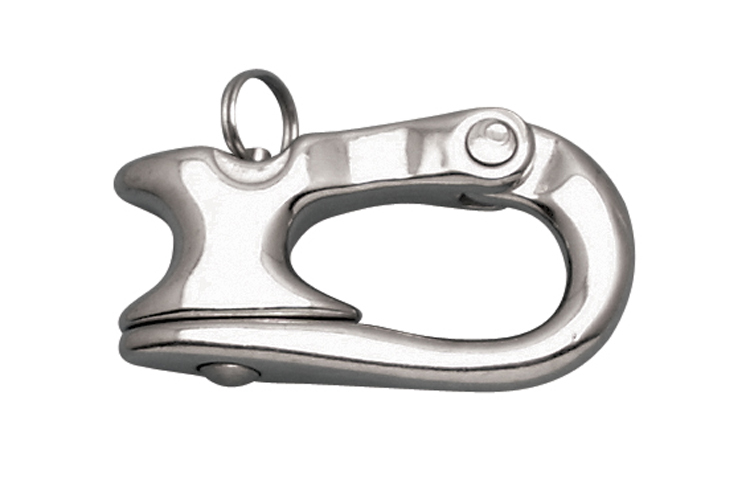

  • Rope Snap Shackles

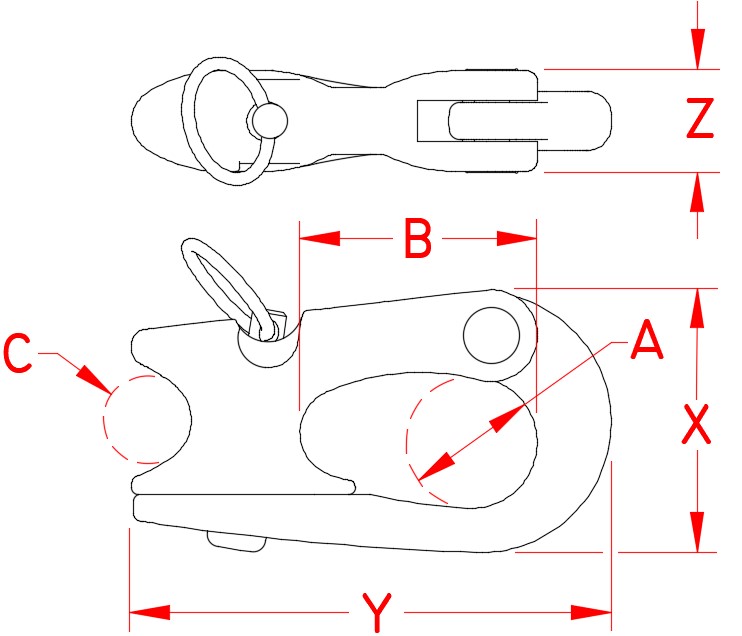

  • Line Drawing for Rope Snap Shackles
The Rope Snap Shackle is available in a variety of sizes ranging from 2" to 3-3/4". This snap shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Rope Snap Shackle N/A 0.55 in N/A 1.05 in N/A 0.42 in N/A 316 Stainless Steel
N/A Rope Snap Shackle N/A 0.68 in N/A 1.25 in N/A 0.57 in N/A 316 Stainless Steel
N/A Rope Snap Shackle N/A 1.05 in N/A 1.95 in N/A 0.88 in N/A 316 Stainless Steel
