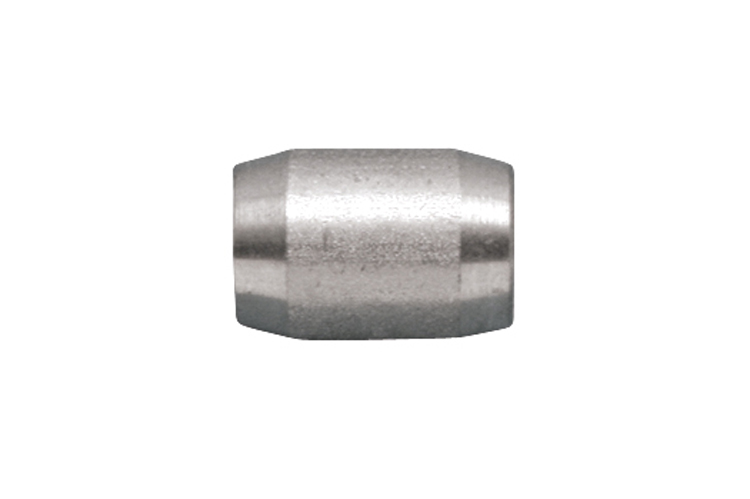

  • Cylindrical Terminal Sleeves

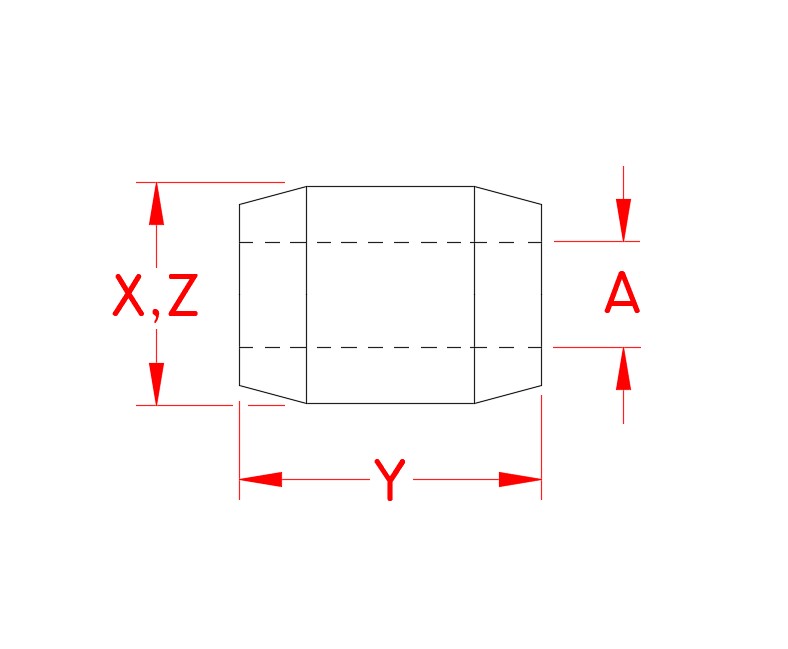

  • Line Drawing for Cylindrical Terminal Sleeves
The Cylindrical Terminal can fit wire sizes from 1/16" to 3/16" for every project. It is made from grade 316 stainless steel for maximum corrosion resistance and durability. These swage terminals are ideal for industrial wire rope assemblies.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension X

Dimension Y

Dimension Z

Material

N/A Cylindrical Terminal Sleeve N/A 0.22 in N/A 0.22 in N/A 0.22 in N/A 316 Stainless Steel
N/A Cylindrical Terminal Sleeve N/A 0.25 in N/A 0.33 in N/A 0.25 in N/A 316 Stainless Steel
N/A Cylindrical Terminal Sleeve N/A 0.30 in N/A 0.42 in N/A 0.30 in N/A 316 Stainless Steel
N/A Cylindrical Terminal Sleeve N/A 0.38 in N/A 0.51 in N/A 0.38 in N/A 316 Stainless Steel
N/A Cylindrical Terminal Sleeve N/A 0.44 in N/A 0.64 in N/A 0.44 in N/A 316 Stainless Steel
