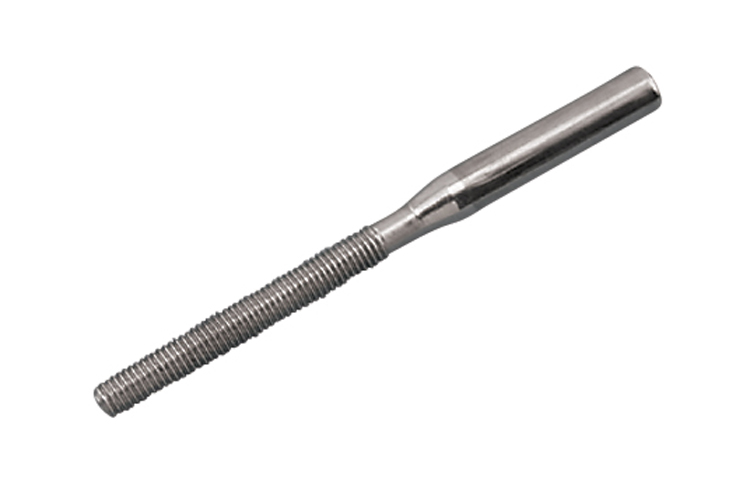

  • Unified National Coarse (UNC) Thread Rail Swage Studs
  • Line Drawing for Unified National Coarse (UNC) Thread Rail Swage Studs
The Rail Swage Stud can fit wire sizes from 1/8" to 3/16" and features a UNC, right hand and left hand thread. This swage stud is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine, industrial and architectural wire rope swage assemblies.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Unified National Coarse (UNC) Thread Rail Swage Stud N/A 1/8 in N/A 1/4 in N/A 2.25 in N/A 316 Stainless Steel
N/A Unified National Coarse (UNC) Thread Rail Swage Stud N/A 5/32 in N/A 1/4 in N/A 2.25 in N/A 316 Stainless Steel
N/A Unified National Coarse (UNC) Thread Rail Swage Stud N/A 3/16 in N/A 1/4 in N/A 2.25 in N/A 316 Stainless Steel
N/A Unified National Coarse (UNC) Thread Rail Swage Stud N/A 1/8 in N/A 1/4 in N/A 2.25 in N/A 316 Stainless Steel
N/A Unified National Coarse (UNC) Thread Rail Swage Stud N/A 5/32 in N/A 1/4 in N/A 2.25 in N/A 316 Stainless Steel
N/A Unified National Coarse (UNC) Thread Rail Swage Stud N/A 3/16 in N/A 1/4 in N/A 2.25 in N/A 316 Stainless Steel
