  • Plain Ball Sleeves

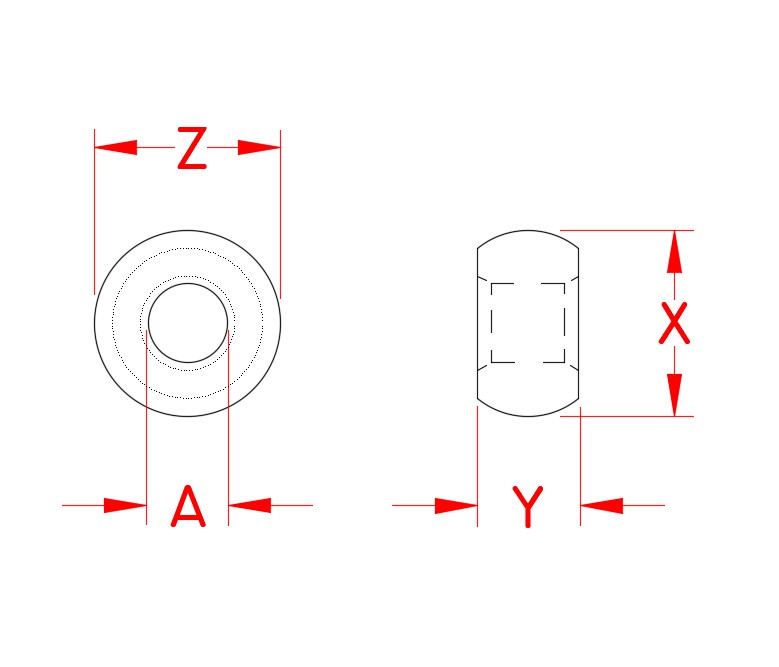

  • Line Drawing for Plain Ball Sleeves

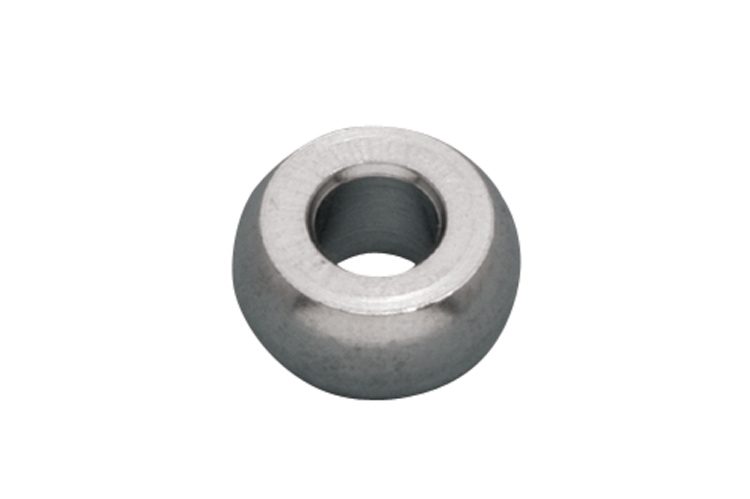

The Plain Ball is available to fit wire sizes from 1/32" to 1/4" for every project. It is made from grade 316 stainless steel for maximum corrosion resistance and durability. These swage balls are ideal for industrial wire rope assemblies.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension X

Dimension Y

Dimension Z

Material

N/A Plain Ball Sleeve N/A 0.21 in N/A 0.14 in N/A 0.21 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.21 in N/A 0.14 in N/A 0.21 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.21 in N/A 0.14 in N/A 0.21 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.29 in N/A 0.17 in N/A 0.29 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.36 in N/A 0.19 in N/A 0.36 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.43 in N/A 0.23 in N/A 0.43 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.50 in N/A 0.26 in N/A 0.50 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.56 in N/A 0.30 in N/A 0.56 in N/A 316 Stainless Steel
N/A Plain Ball Sleeve N/A 0.63 in N/A 0.34 in N/A 0.63 in N/A 316 Stainless Steel
