  • Right Hand Swage Studs
  • Line Drawing for Left Hand Swage Studs

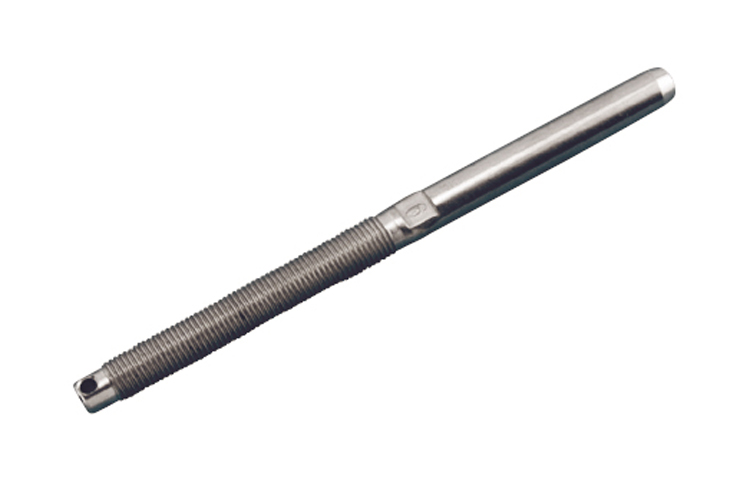

The Right Hand Swage Stud can fit wire sizes from 1/16" to 1/2" for every project, large or small. This stud features a UNF, right hand thread and is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine, industrial and architectural applications.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Right Hand Swage Stud N/A 1/16 in N/A 3/16 in N/A 1.69 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 3/32 in N/A 3/16 in N/A 1.75 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 3/32 in N/A 1/4 in N/A 2.25 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 1/8 in N/A 1/4 in N/A 2.20 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 5/32 in N/A 1/4 in N/A 2.15 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 3/16 in N/A 1/4 in N/A 2.19 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 5/32 in N/A 5/16 in N/A 2.12 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 3/16 in N/A 5/16 in N/A 2.50 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 3/16 in N/A 3/8 in N/A 2.68 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 7/32 in N/A 3/8 in N/A 2.72 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 1/4 in N/A 3/8 in N/A 2.75 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 1/4 in N/A 1/2 in N/A 3.00 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 9/32 in N/A 1/2 in N/A 3.10 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 5/16 in N/A 1/2 in N/A 3.12 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 3/8 in N/A 5/8 in N/A 4.00 in N/A 316 Stainless Steel
N/A Right Hand Swage Stud N/A 1/2 in N/A 3/4 in N/A 4.75 in N/A 316 Stainless Steel
