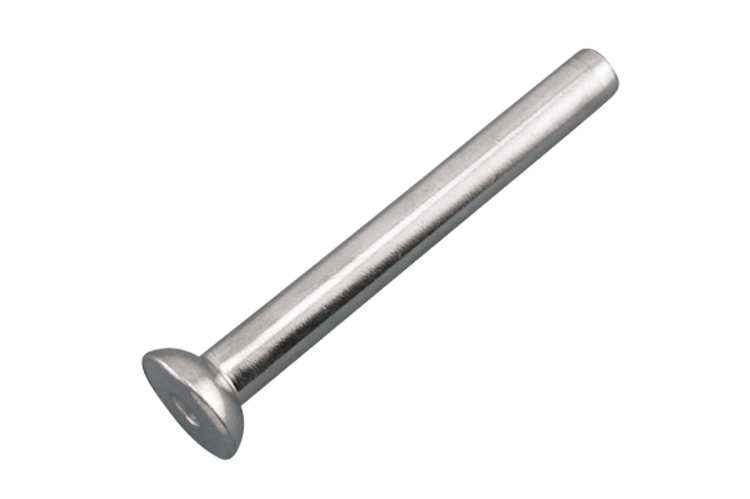

  • Swage Stemballs

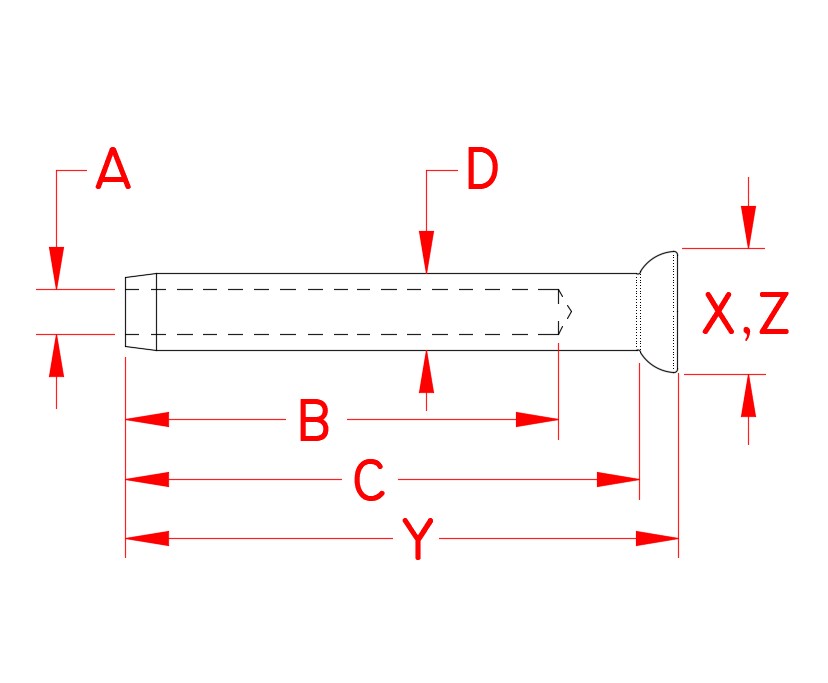

  • Line Drawing for Swage Stemballs
The Swage Stemball can fit wire sizes ranging from 1/8" to 3/8". This swage terminal is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and architectural wire rope swage assembly applications.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Swage StemBall N/A 1/8 in N/A 1.54 in N/A 2.08 in N/A 316 Stainless Steel
N/A Swage StemBall N/A 5/32 in N/A 1.77 in N/A 2.52 in N/A 316 Stainless Steel
N/A Swage StemBall N/A 3/16 in N/A 2.00 in N/A 2.81 in N/A 316 Stainless Steel
N/A Swage StemBall N/A 1/4 in N/A 2.53 in N/A 3.31 in N/A 316 Stainless Steel
N/A Swage StemBall N/A 5/16 in N/A 3.25 in N/A 4.23 in N/A 316 Stainless Steel
N/A Swage StemBall N/A 3/8 in N/A 3.48 in N/A 4.69 in N/A 316 Stainless Steel
