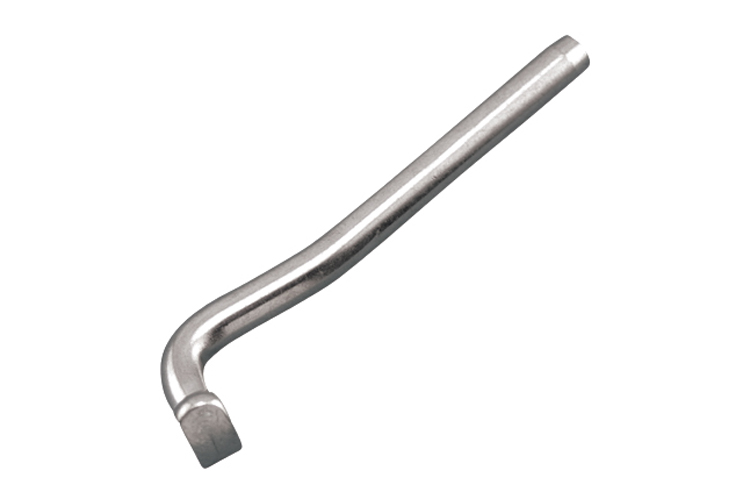

  • Swage "T" Terminals

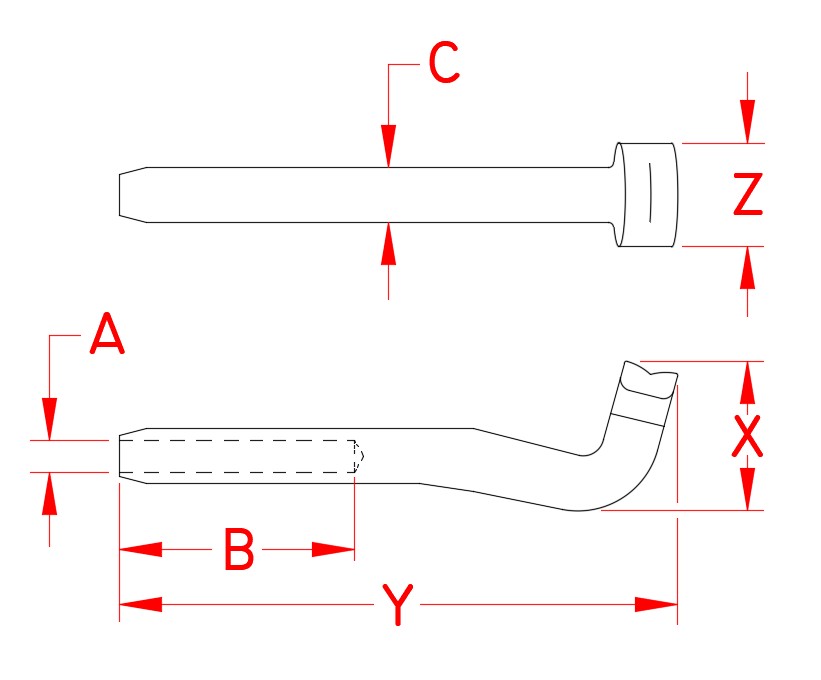

  • Line Drawing for Swage "T" Terminals
The Swage "T" Terminal can fit wire sizes ranging from 3/32" to 3/8" to fit every project, large or small. This swage terminal is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial swage applications.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Dimension X

Dimension Y

Dimension Z

Material

N/A Swage "T" Terminal N/A 0.70 in N/A 3.25 in N/A 0.58 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 0.80 in N/A 3.32 in N/A 0.61 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 0.90 in N/A 3.90 in N/A 0.66 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 1.10 in N/A 4.39 in N/A 0.73 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 1.40 in N/A 5.17 in N/A 1.09 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 1.35 in N/A 4.29 in N/A 1.08 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 1.65 in N/A 5.71 in N/A 1.20 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 1.95 in N/A 7.14 in N/A 1.37 in N/A 316 Stainless Steel
N/A Swage "T" Terminal N/A 2.00 in N/A 8.00 in N/A 1.40 in N/A 316 Stainless Steel
