  • 316 Stainless Steel Fed. Spec Thimbles

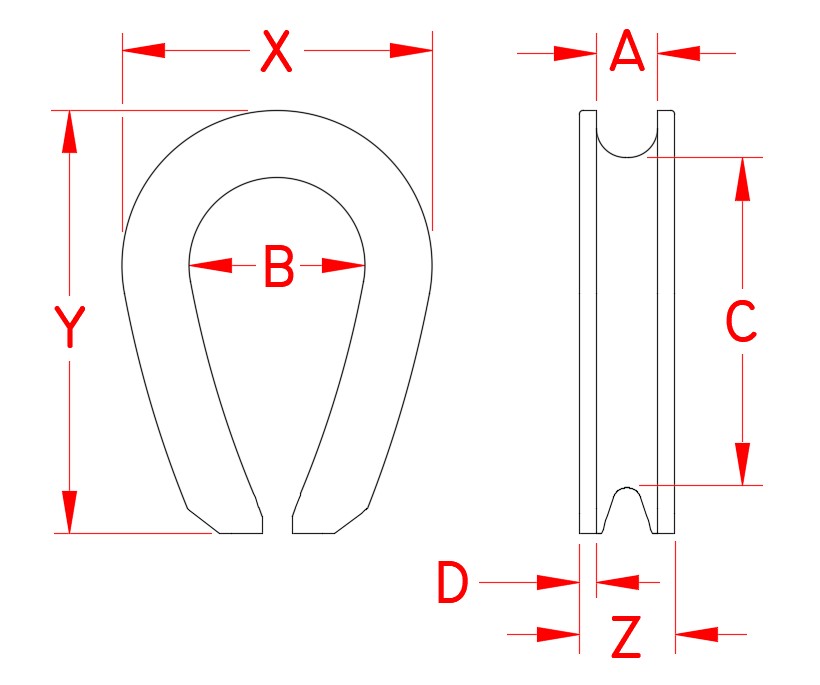

  • Line Drawing for Fed. Spec Thimbles
The Fed. Spec Thimble is available in sizes ranging from 3/16" to 1-1/4" to ensure a perfect fit for every project. This thimble is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and wire rope applications.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Size

Dimension A

Dimension B

Material

N/A 316 Stainless Steel Fed. Spec Thimble N/A 3/16 in N/A 3/16 in N/A 0.72 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 1/4 in N/A 1/4 in N/A 0.90 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 5/16 in N/A 5/16 in N/A 1.08 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 3/8 in N/A 3/8 in N/A 1.13 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 7/16 in N/A 7/16 in N/A 1.25 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 1/2 in N/A 1/2 in N/A 1.52 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 9/16 in N/A 9/16 in N/A 1.50 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 5/8 in N/A 5/8 in N/A 1.78 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 3/4 in N/A 3/4 in N/A 2.02 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 7/8 in N/A 7/8 in N/A 2.30 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 1 in N/A 1 in N/A 2.56 in N/A 316 Stainless Steel
N/A 316 Stainless Steel Fed. Spec Thimble N/A 1-1/8 to 1-1/4 in N/A 1-1/4 in N/A 2.88 in N/A 316 Stainless Steel
