  • Closed Body Turnbuckles
  • Line Drawing for Closed Body Turnbuckles

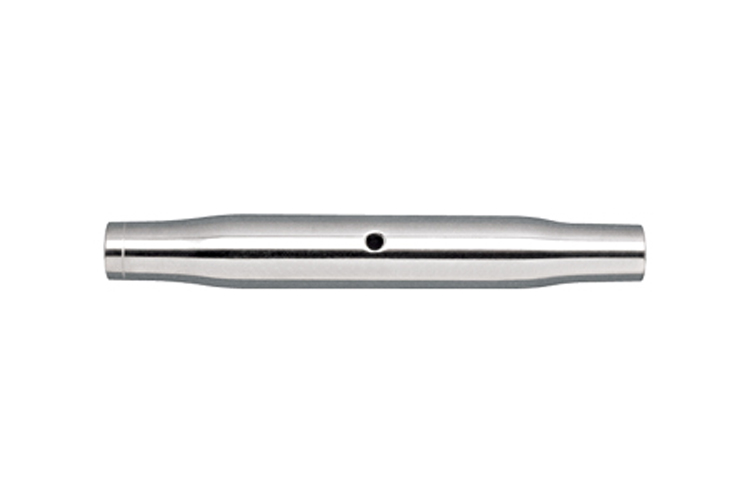

This closed body turnbuckle is available with UNC or UNF threads and is available in sizes ranging from 3/16" to 5/8". It is made from grade 316 stainless steel for maximum corrosion resistance and durability. There is a hole in the body for easy tightening by inserting an Allen key and rotating.
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension X

Dimension Y

Dimension Z

Material

N/A Closed Body Turnbuckle N/A 0.31 in N/A 3.65 in N/A 0.31 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.39 in N/A 4.22 in N/A 0.39 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.54 in N/A 4.42 in N/A 0.54 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.67 in N/A 4.75 in N/A 0.67 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.79 in N/A 6.10 in N/A 0.79 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 1.08 in N/A 7.53 in N/A 1.08 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.39 in N/A 3.65 in N/A 0.39 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.39 in N/A 4.22 in N/A 0.39 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.54 in N/A 4.42 in N/A 0.54 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.67 in N/A 4.75 in N/A 0.67 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 0.79 in N/A 6.10 in N/A 0.79 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 1.08 in N/A 7.53 in N/A 1.08 in N/A 316 Stainless Steel
N/A Closed Body Turnbuckle N/A 1.32 in N/A 8.70 in N/A 1.32 in N/A 316 Stainless Steel
