  • Cast Jaw and Jaw Turnbuckles

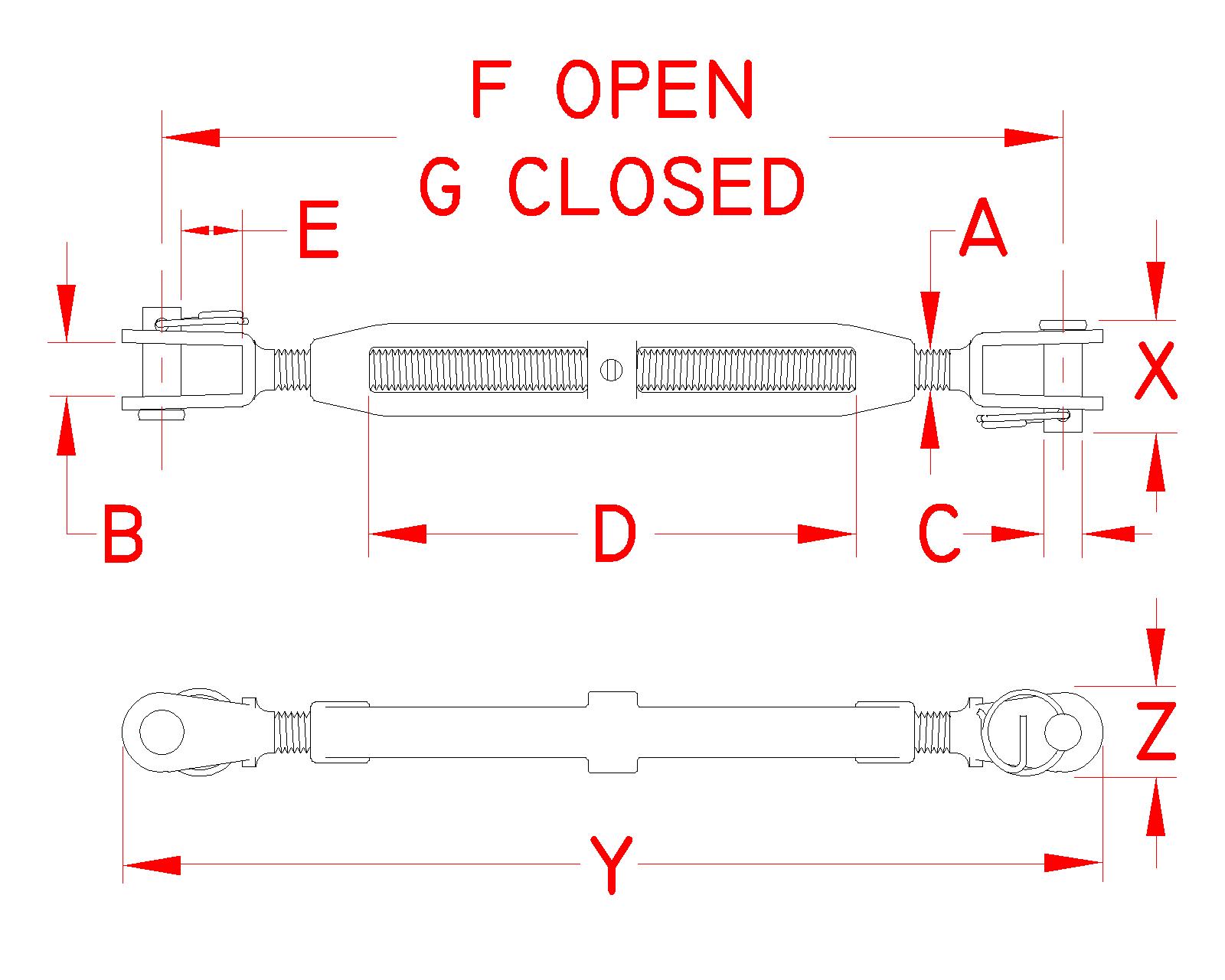

  • Line Drawing for Cast Jaw and Jaw Turnbuckles
The Cast Jaw and Jaw Turnbuckle features an open body and is available in sizes ranging from 3/16" to 3/4" to fit every project. These turnbuckles are made from grade 316 stainless steel for maximum corrosion resistance and durability, making them ideal for marine and industrial use.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Cast Jaw and Jaw Turnbuckle N/A 3/16 in N/A 0.30 in N/A 0.18 in N/A 316 Stainless Steel
N/A Cast Jaw and Jaw Turnbuckle N/A 1/4 in N/A 0.38 in N/A 0.22 in N/A 316 Stainless Steel
N/A Cast Jaw and Jaw Turnbuckle N/A 5/16 in N/A 0.40 in N/A 0.30 in N/A 316 Stainless Steel
N/A Cast Jaw and Jaw Turnbuckle N/A 3/8 in N/A 0.46 in N/A 0.37 in N/A 316 Stainless Steel
N/A Cast Jaw and Jaw Turnbuckle N/A 1/2 in N/A 0.59 in N/A 0.46 in N/A 316 Stainless Steel
N/A Cast Jaw and Jaw Turnbuckle N/A 5/8 in N/A 0.69 in N/A 0.63 in N/A 316 Stainless Steel
N/A Cast Jaw and Jaw Turnbuckle N/A 3/4 in N/A 0.76 in N/A 0.73 in N/A 316 Stainless Steel
