  • Cast Stub and Stub Turnbuckles

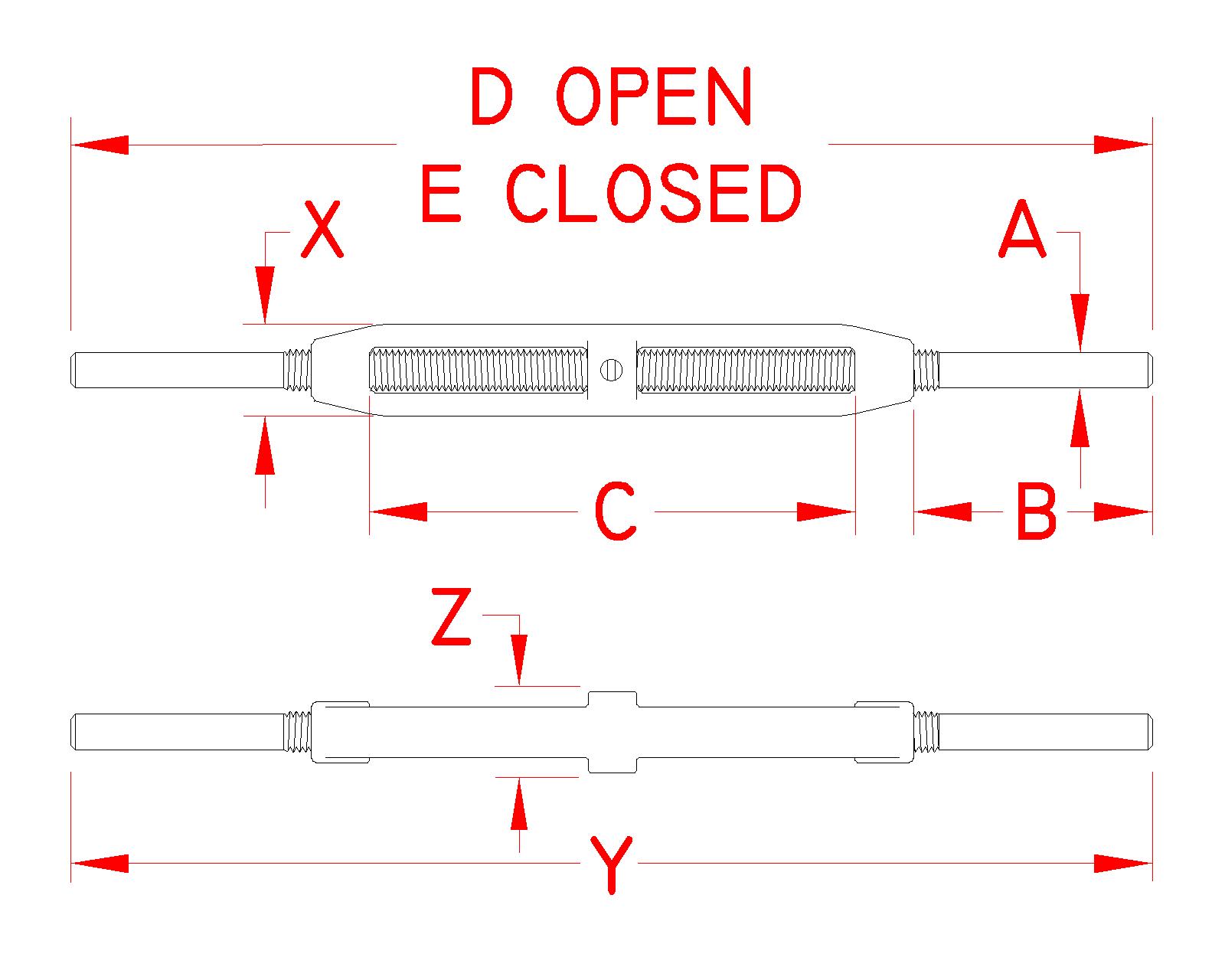

  • Line Drawing for Cast Stub and Stub Turnbuckles

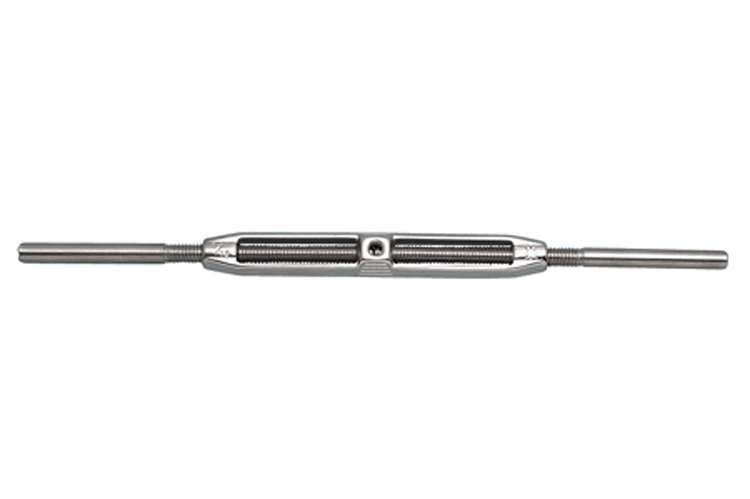

The Cast Stub and Stub Turnbuckle features an open body and is available in sizes ranging from 3/16" to 3/4" to fit every project. These turnbuckles are made from grade 316 stainless steel for maximum corrosion resistance and durability, making them ideal for marine and industrial use.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Cast Stub and Stub Turnbuckle N/A 3/16 in N/A 0.85 in N/A 2.50 in N/A 316 Stainless Steel
N/A Cast Stub and Stub Turnbuckle N/A 1/4 in N/A 2.50 in N/A 3.00 in N/A 316 Stainless Steel
N/A Cast Stub and Stub Turnbuckle N/A 5/16 in N/A 2.75 in N/A 4.00 in N/A 316 Stainless Steel
N/A Cast Stub and Stub Turnbuckle N/A 3/8 in N/A 2.85 in N/A 6.00 in N/A 316 Stainless Steel
N/A Cast Stub and Stub Turnbuckle N/A 1/2 in N/A 3.35 in N/A 6.00 in N/A 316 Stainless Steel
N/A Cast Stub and Stub Turnbuckle N/A 5/8 in N/A 3.25 in N/A 8.00 in N/A 316 Stainless Steel
N/A Cast Stub and Stub Turnbuckle N/A 3/4 in N/A 3.38 in N/A 10.00 in N/A 316 Stainless Steel
