  • Forged Stub and Stub Turnbuckles

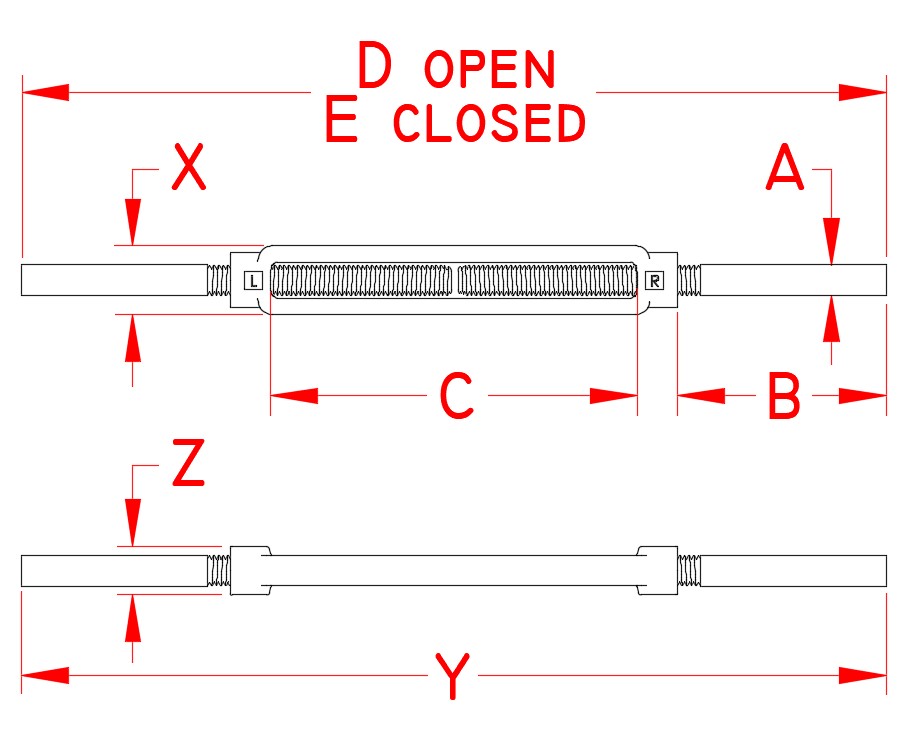

  • Line Drawing for Forged Stub and Stub Turnbuckles

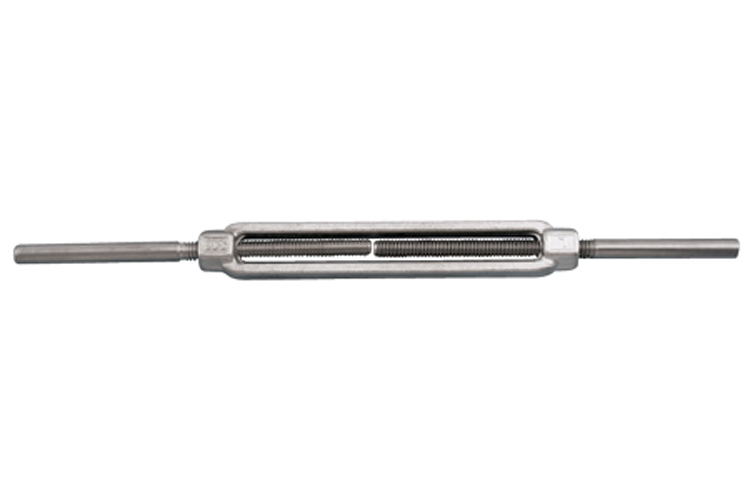

The Forged Stub and Stub Turnbuckle feature an open body. These turnbuckles are available in sizes ranging from 1/4" to 1-1/4" to fit every project and are made from grade 316 stainless steel for maximum corrosion resistance and durability. They are ideal for marine and industrial applications. They meet the WLL and dimensions of ASTM specification F1145-05 (2011) Type 1, Class C.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Forged Stub and Stub Turnbuckle N/A 1/4 in N/A 2.00 in N/A 4.00 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 5/16 in N/A 2.50 in N/A 4.50 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 3/8 in N/A 2.85 in N/A 6.00 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 1/2 in N/A 3.30 in N/A 6.00 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 5/8 in N/A 3.38 in N/A 6.00 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 3/4 in N/A 3.85 in N/A 6.00 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 1 in N/A 4.65 in N/A 6.00 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 1 in N/A 4.65 in N/A 12.00 in N/A 316-NM Stainless Steel
N/A Forged Stub and Stub Turnbuckle N/A 1-1/4 in N/A 4.90 in N/A 12.00 in N/A 316-NM Stainless Steel
