  • 304 Stainless Steel Wire Rope Clips
  • Line Drawing for Wire Rope Clips

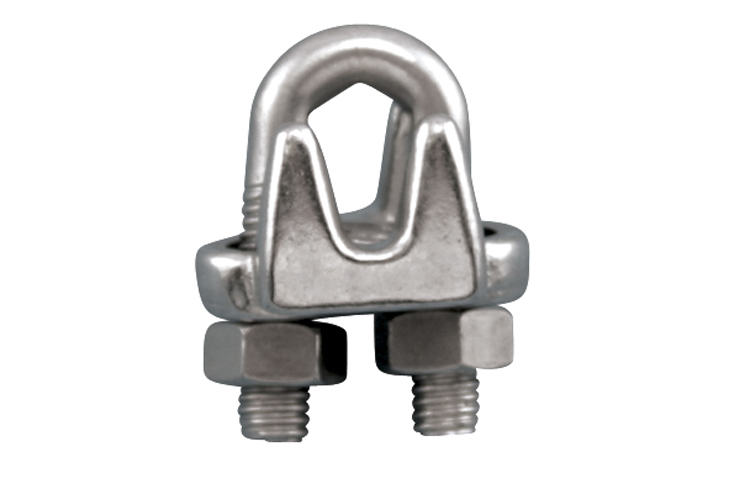

The Wire Rope Clip is available in sizes ranging from 1/16" to 1-1/4" to ensure a perfect fit for every project. This wire clip is precision cast and made from grade 304 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging applications.
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Wire Rope Clip N/A 1/16 in N/A 0.09 in N/A 0.41 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 1/8 in N/A 0.12 in N/A 0.48 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 5/32 in N/A 0.15 in N/A 0.56 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 3/16 in N/A 0.19 in N/A 0.62 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 1/4 in N/A 0.23 in N/A 0.72 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 5/16 in N/A 0.31 in N/A 0.84 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 3/8 in N/A 0.38 in N/A 0.96 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 1/2 in N/A 0.47 in N/A 1.11 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 9/16 in N/A 0.47 in N/A 1.27 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 5/8 in N/A 0.54 in N/A 1.30 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 3/4 in N/A 0.54 in N/A 1.63 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 7/8 in N/A 0.61 in N/A 1.75 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 1 in N/A 0.61 in N/A 2.10 in N/A 304 Stainless Steel
N/A Wire Rope Clip N/A 1-1/4 in N/A 0.85 in N/A 2.08 in N/A 304 Stainless Steel
