  • Pelican Hooks and Swage Stud

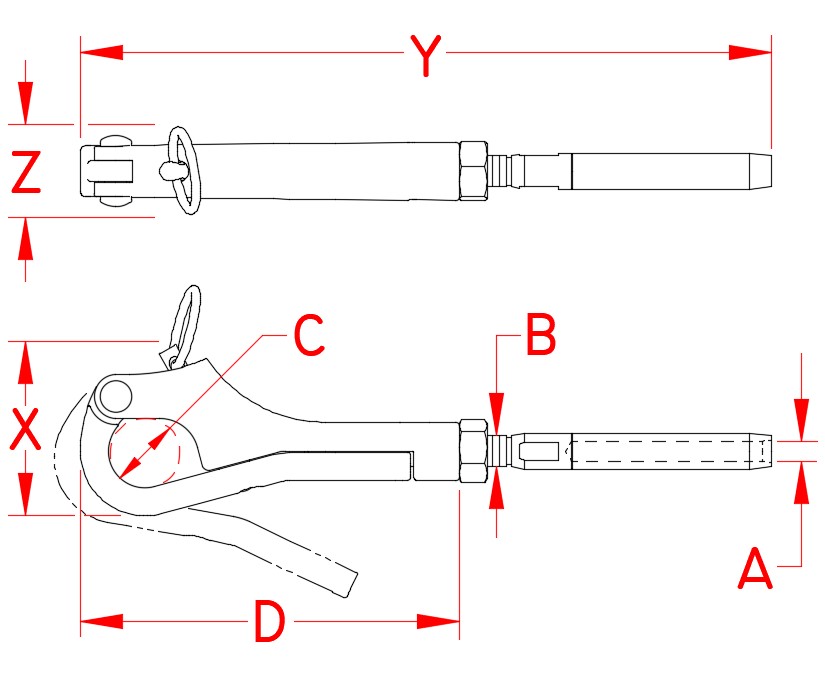

  • Line Drawing for Pelican Hooks and Swage Stud

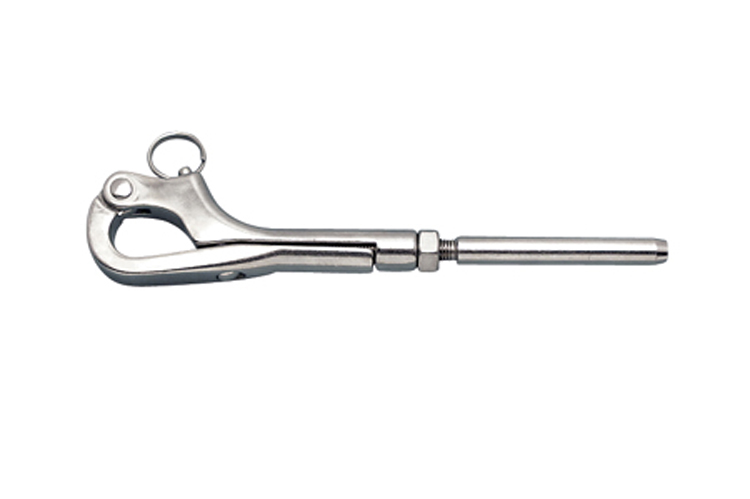

The Pelican Hook and Swage Stud fits wire rope sizes from 1/8" to 1/4". It features a pelican hook, swage stud and UNF threads. This pelican hook is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for a lifeline application where a gate is desired.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Pelican Hook and Swage Stud N/A 1/8 in N/A 1/4 in N/A 0.50 in N/A 316 Stainless Steel
N/A Pelican Hook and Swage Stud N/A 3/16 in N/A 5/16 in N/A 0.64 in N/A 316 Stainless Steel
N/A Pelican Hook and Swage Stud N/A 1/4 in N/A 1/2 in N/A 1.00 in N/A 316 Stainless Steel
