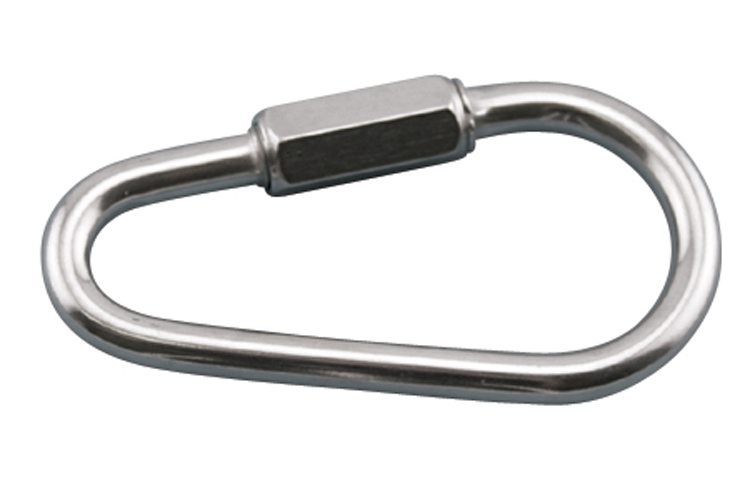

  • Pear Quick Links

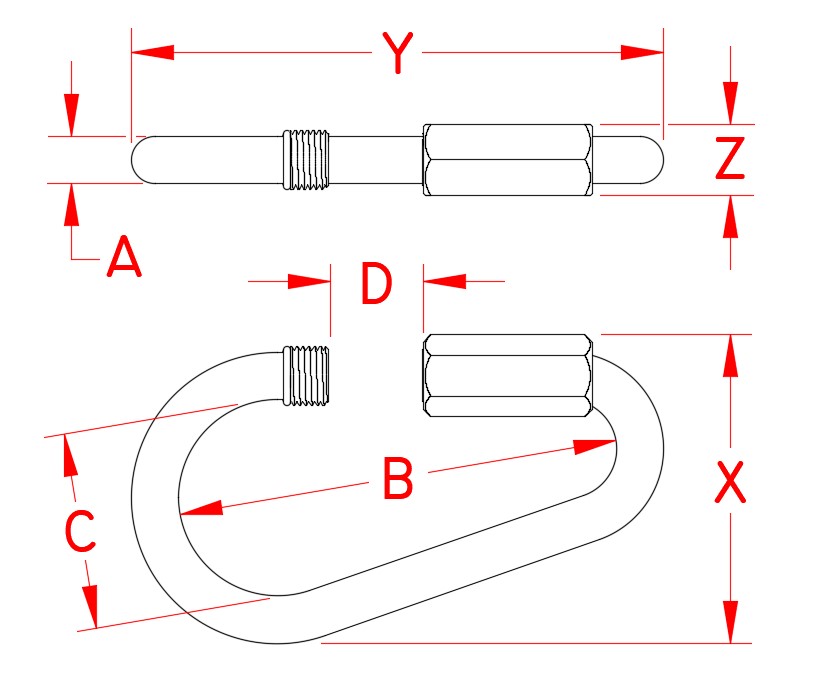

  • Line Drawing for Pear Quick Links
The Pear Quick Link is available in sizes ranging from 1/8" to 5/8" to ensure a perfect fit for every project. This link is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and linking applications.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Dimension B

Dimension C

Material

N/A Pear Quick Link N/A 1/8 in N/A 1.79 in N/A 0.80 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 5/32 in N/A 2.05 in N/A 0.95 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 3/16 in N/A 2.35 in N/A 1.10 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 1/4 in N/A 2.56 in N/A 1.20 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 5/16 in N/A 3.37 in N/A 1.45 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 23/64 in N/A 3.45 in N/A 1.59 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 3/8 in N/A 3.50 in N/A 1.50 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 1/2 in N/A 4.47 in N/A 2.12 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 9/16 in N/A 5.14 in N/A 2.26 in N/A 316 Stainless Steel
N/A Pear Quick Link N/A 5/8 in N/A 5.74 in N/A 2.52 in N/A 316 Stainless Steel
